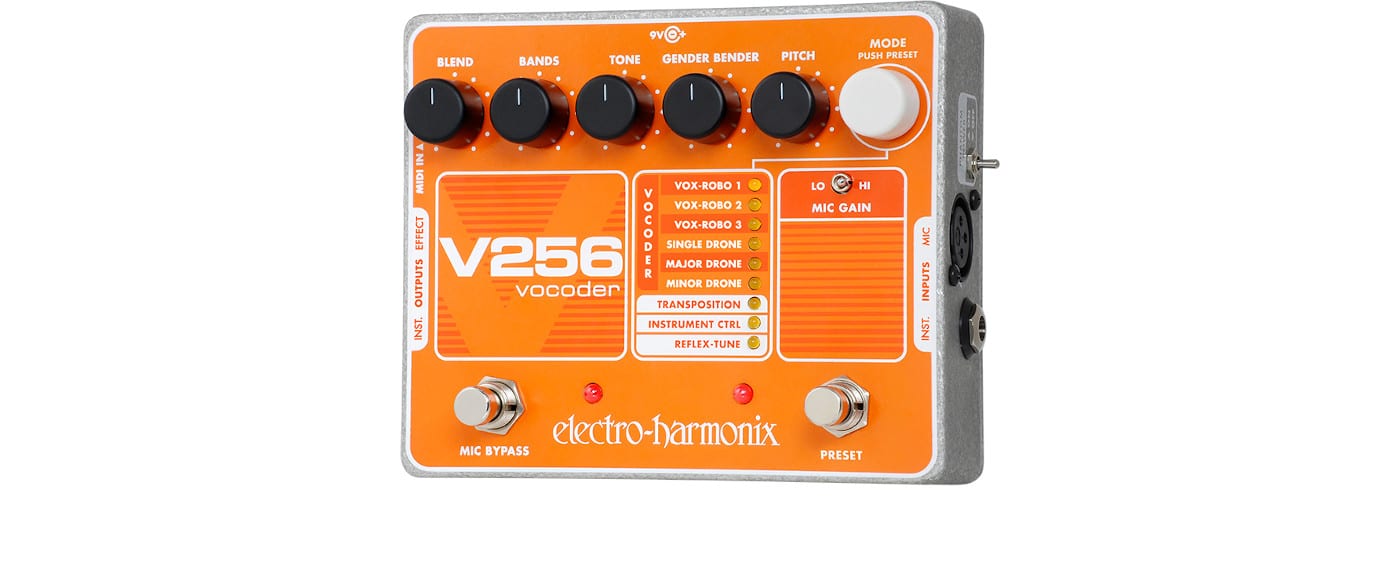

Vocal Processor – Electro-Harmonix https://www.ehx.com Liberate Your Sound Thu, 01 Aug 2024 14:14:48 +0000 en-US hourly 1 https://wordpress.org/?v=6.6.1 https://www.ehx.com/wp-content/uploads/2020/11/cropped-fav-32x32.png Vocal Processor – Electro-Harmonix https://www.ehx.com 32 32 V256 https://www.ehx.com/products/v256/ Wed, 14 Oct 2020 08:05:36 +0000 https://www.ehx.com/product/v256/

BLEND

Sets the mix of dry vocal signal.

BANDS

In most modes, sets the number of bands for the vocoder.

TONE

Adjusts the tonal quality of the effect.

GENDER BENDER

Formant shift corresponds roughly to the length of the vocal tract.

PITCH

In the first six modes, the PITCH knob controls the pitch of the internal synthesized voices.

MODE KNOB

Enables the user to scroll through the 9 Modes.

MIC GAIN TOGGLE SWITCH

Change the sensitivity of the mic pre-amp.

MIC BYPASS FOOTSWITCH / STATUS LED

Toggles between effect mode and bypass mode. If the STATUS LED is lit, then the V256 is in effect mode.

PRESET FOOTSWITCH / LED

Press and release the PRESET footswitch to load a preset into the presently selected mode.

INST INPUT ¼” Jack

In the VOCODER modes of the V256, the instrument signal can be used as the carrier signal for the vocoder effect. In INSTRUMENT CTRL mode, the instrument signal is used to determine the note that will replace the pitch of the sung note. In REFLEX-TUNE mode, with the PITCH knob set fully CCW, the instrument signal will determine the diatonic key and the V256 will quantize to notes in that key scale.

MIC INPUT XLR JACK

Connect your microphone directly to this input jack.

PHANTOM POWER TOGGLE SWITCH

Pushing the toggle switch up will supply +40V to the microphone. The PHANTOM POWER switch should only be set to ON when using a condenser microphone.

EFFECT OUTPUT XLR JACK

The V256’s effect is output through the EFFECT OUTPUT XLR jack on the side of the unit. The effect signal as well as the dry and bypassed vocals are output from this jack.

INST OUTPUT ¼” JACK

The Instrument output on the V256 outputs a blend of the effected signal as well as the dry instrument signal or MIDI controlled internal synthesizer.

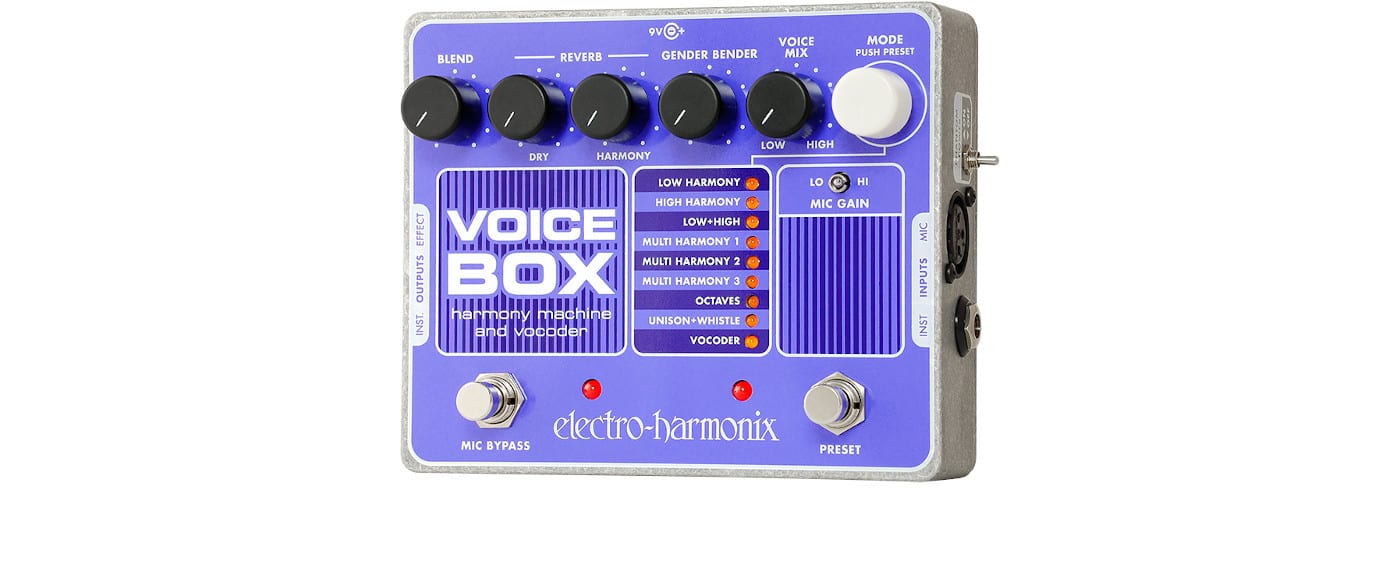

]]> Voice Box https://www.ehx.com/products/voice-box/ Wed, 14 Oct 2020 08:05:03 +0000 https://www.ehx.com/product/voice-box/

BLEND KNOB

Wet/dry control for the effect output jack.

DRY REVERB KNOB

This is a volume control for the reverb that is applied to the Dry vocals.

HARMONY REVERB KNOB

This is a volume control for the reverb that is applied to the effected vocals.

GENDER BENDER KNOB

Formant shift corresponds roughly to the length of the vocal tract.

VOICE MIX KNOB

Mixes between two different voices. In most cases it mixes between a low harmony voice (counter-clockwise position) and a high harmony voice (clockwise position).

MODE KNOB

A rotary encoder enabling the user to scroll through the 9 Modes of the Voice Box.

MIC GAIN TOGGLE SWITCH

Use this switch to change the sensitivity of the mic pre-amp.

MIC BYPASS FOOTSWITCH / STATUS LED

Toggles the between effect mode and bypass mode.

PRESET FOOTSWITCH

Loads a preset you previously saved.

INSTRUMENT INPUT ¼” JACK

In all modes but two (OCTAVES and UNISON + WHISTLE), the Voice Box requires an instrument to be played along with your vocals.

MIC INPUT XLR JACK

Connect your microphone directly to this input jack.

PHANTOM POWER TOGGLE SWITCH

Pushing the toggle switch up will supply +45V to the microphone.

INSTRUMENT OUTPUT ¼” JACK

Connect this output to your amp, effects or other device.

EFFECT OUTPUT XLR JACK

The vocal harmonies, vocoder and other effects as well as the dry and bypassed vocals are output from this jack.

]]>
