Big Muff Pi Hardware Plugin

Electro Harmonix — Thu, 08 Sep 2022 14:00:08 +0000

PANIC BUTTON

Press the PANIC button to reset the USB connection to the computer. This is useful if the BMπHP becomes unresponsive to its software plugin either by not processing audio or no longer responding to control movement or automation.

USB 2.0 TYPE B PORT

Standard USB port located on the rear panel. Connect the supplied USB cable, or any other standard USB cable, to this port to provide both power and a data connection the BMπHP. You must connect the USB cable to the BMπHP to use it as a Hardware Plugin. Power for the BMπHP may be obtained from the USB cable or from the supplied AC Adapter.

9V POWER JACK

Plug the output of the factory-supplied EHX9.6DC 200mA AC adapter into the 9V power jack. The BMπHP draws 120mA at 9VDC with a center negative plug. The BMπHP accepts Boss® and Ibanez® style AC Adaptors capable of delivering at least 150mA.

STEREO HEADPHONE OUTPUT JACK

1/4” stereo output jack located on the rear panel. Both the Left and Right Output jack signals are also routed to the Headphone output jack. Use the Headphone LVL knob to adjust the volume at the Headphone jack.

DIRECT MONITOR ILLUMINATED BUTTON

When enabled, DIRECT MONITOR sends the signal headed to the ADC to the stereo output jacks and to the Headphone output located on the rear panel. This is particularly useful when using the BMπHP as a USB audio interface for recording new audio tracks. Note: the DIRECT MONITOR switch is disabled when using the BMπHP as a standalone guitar pedal. In this case, the audio output is always sent to the stereo output jacks and Headphone output.

HEADPHONE LEVEL KNOB

Controls the volume level at the Headphone output jack on the rear panel.

USB STATUS LIGHT

Lights red when the BMπHP is locked onto your computer’s USB. The same LED lights green when a proper audio connection has been made between the software plugin and the Hardware Plugin.

USB GAIN KNOB

Controls the signal level of the audio sent to the computer before it hits BMπHP’s internal A/D converter (ADC). Rotate GAIN clockwise until you see one or both CLIP LEDs light. Then rotate it counter-clockwise a bit so that the CLIP LEDs remain off. This will ensure a large enough analog signal is converted to digital audio without exceeding the digital audio’s total range.

CLIP L & R LEDS

LEDs will light when the audio signal into the ADC is clipping. If the LEDs light up, the audio signal is too loud for the ADC and the digitized audio signal will be distorted on its loudest peaks. Use the GAIN knob to set the right amount of signal into the ADC

VOLUME KNOB

Output volume control for the Big Muff section.

SUSTAIN KNOB

Adjusts the amount of sustain and distortion.

TONE KNOB

Provides a range of sounds from high treble to deep bass. As you turn the TONE knob clockwise, treble increases and bass decreases.

TONE BYPASS ILLUMINATION BUTTON

When enabled, the BYPASS button completely bypasses the Big Muff’s TONE knob and analog EQ, essentially removing the TONE knob from the circuit. When the BYPASS button is disabled, the TONE knob is active and will allow users to sculpt their Big Muff sound. Press the BYPASS button to enable or disable Tone Bypass. If the button is lit, the TONE knob and its circuitry is bypassed.

TONE WICKER ILLUMINATION BUTTON

The Wicker effect opens up the Big Muff’s bandwidth allowing more high frequency signal to pass through for a bright and clear top end. Disable Wicker to obtain the classic Big Muff π sound. Press the WICKER button to enable or disable the Wicker effect. If the button is lit, the Wicker effect is enabled.

PRESET KNOB & DISPLAY

The single digit LED display indicates the current preset number selected using the preset knob. The PRESET is active if the LED above the PRESET footswitch is lit. If this LED is not lit then you are in LIVE mode, where the current knob positions indicate the actual Big Muff setting.

R INPUT

Instrument/Line level, 1/4” unbalanced input jack. Plug your instrument or output from another effects pedal into this jack. Use this jack with the MONO/L INPUT jack for stereo use. The input impedance presented at this jack is 2MΩ. The maximum allowable signal level is +9.0 dBu. The MONO/L input routes to the Right input if no plug is inserted into R INPUT jack.

MONO/L INPUT

Instrument/Line level, 1/4” unbalanced input jack. Plug your instrument or output from another effects pedal into this jack. If you use just one input, we recommend using the MONO/L input. The input impedance presented at this jack is 2MΩ. The maximum allowable signal level is +9.0 dBu.

R OUTPUT

1/4” unbalanced output jack. The Right output signal is sent through this jack. In Bypass, the dry signal present at the Right input jack is output to the R OUTPUT jack. If a plug is not inserted into the Right input jack then the Left signal is output on the R OUTPUT jack in both effect and bypass modes. The source impedance of the R OUTPUT is 400Ω.

MONO/L OUTPUT

1/4” unbalanced output jack. The Left output signal is sent through this jack. In Bypass, the dry signal at the Left input jack outputs to the MONO/L Output jack. The source impedance of the MONO/L OUTPUT is approximately 400Ω.

BYPASS FOOTSWITCH & LED

Press the BYPASS footswitch to enable or disable the Big Muff effect. When the associated LED is lit, the Big Muff effect is enabled; when the LED is off, the unit is in buffered bypass mode.

PRESET FOOTSWITCH & LED

Press the PRESET footswitch to load or cycle through the 10 presets. When the associated LED is lit, the preset represented by the number on the display is loaded and enabled; when the LED is off, preset mode is off.

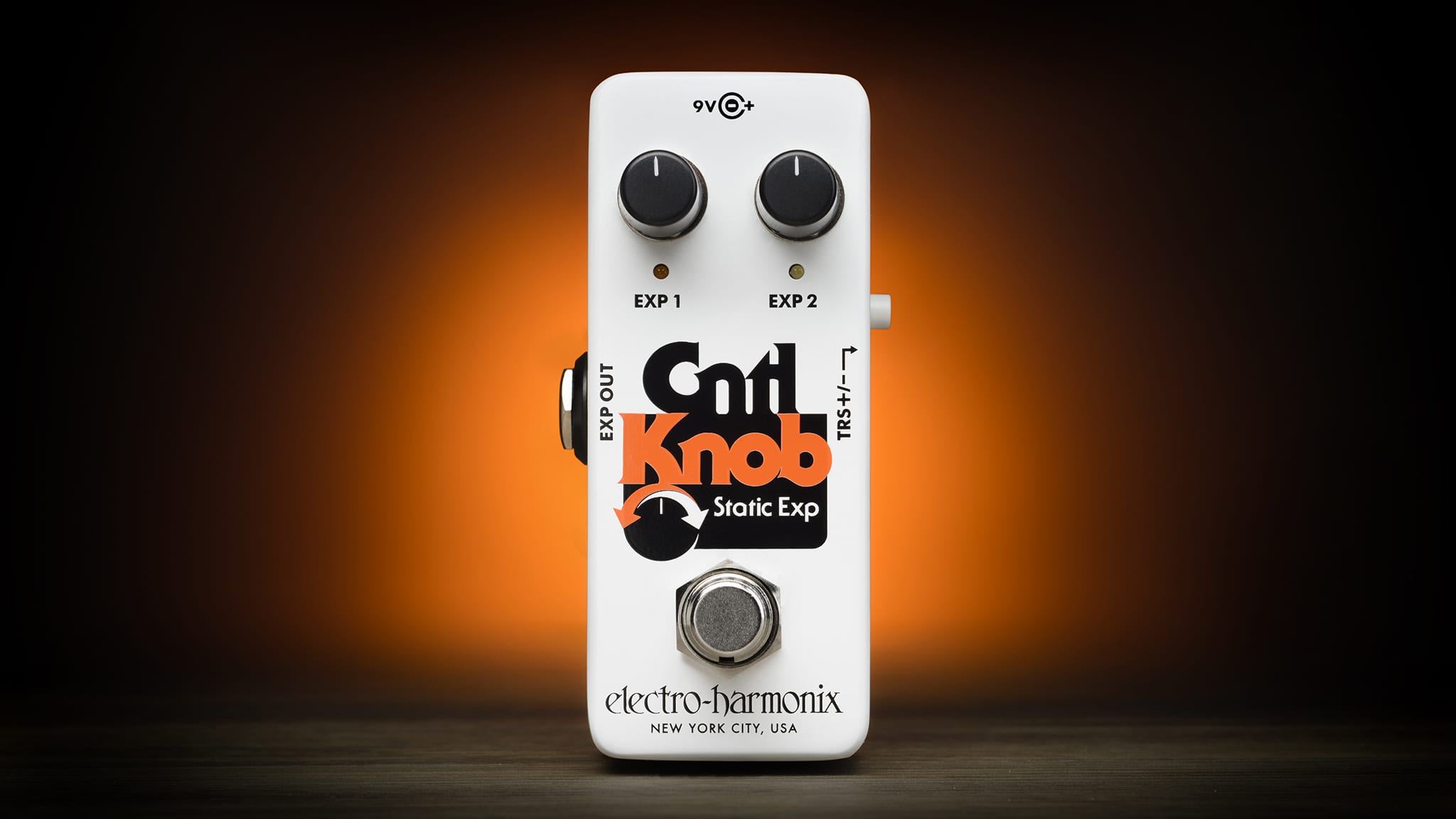

Cntl Knob

admin — Wed, 14 Oct 2020 09:48:16 +0000

EXP 1 KNOB

The position of this knob determines the first expression setting.

EXP 2 KNOB

The position of this knob determines the second expression setting.

TRS +/- BUTTON

When this button is in the inward position, the polarity of the EXP OUT jack is Ring-to-Wiper. When this button is in the outward position, the polarity of EXP OUT is Tip-to-Wiper.

FOOTSWITCH AND LEDs

A press on the footswitch toggles the active expression setting on EXP OUT between EXP 1 and EXP 2. If power is applied, the LEDs below each knob light to indicate the currently active knob.

EXP OUT JACK

This jack outputs the expression value set by the currently active knob. A TRS (tip-ring-sleeve) cable is required for this jack.

2020

admin — Wed, 14 Oct 2020 09:46:29 +0000

INPUT JACK

Connect the cable from your instrument to the Input Jack of the tuner.

OUTPUT JACK

Connect your amp or another effect unit to the Output Jack.

PITCH BUTTON

Change the reference frequency.

FLAT BUTTON

This button lets you use flat tunings.

FOOTSWITCH

Pressing the Foot Switch will turn the tuner on/off.

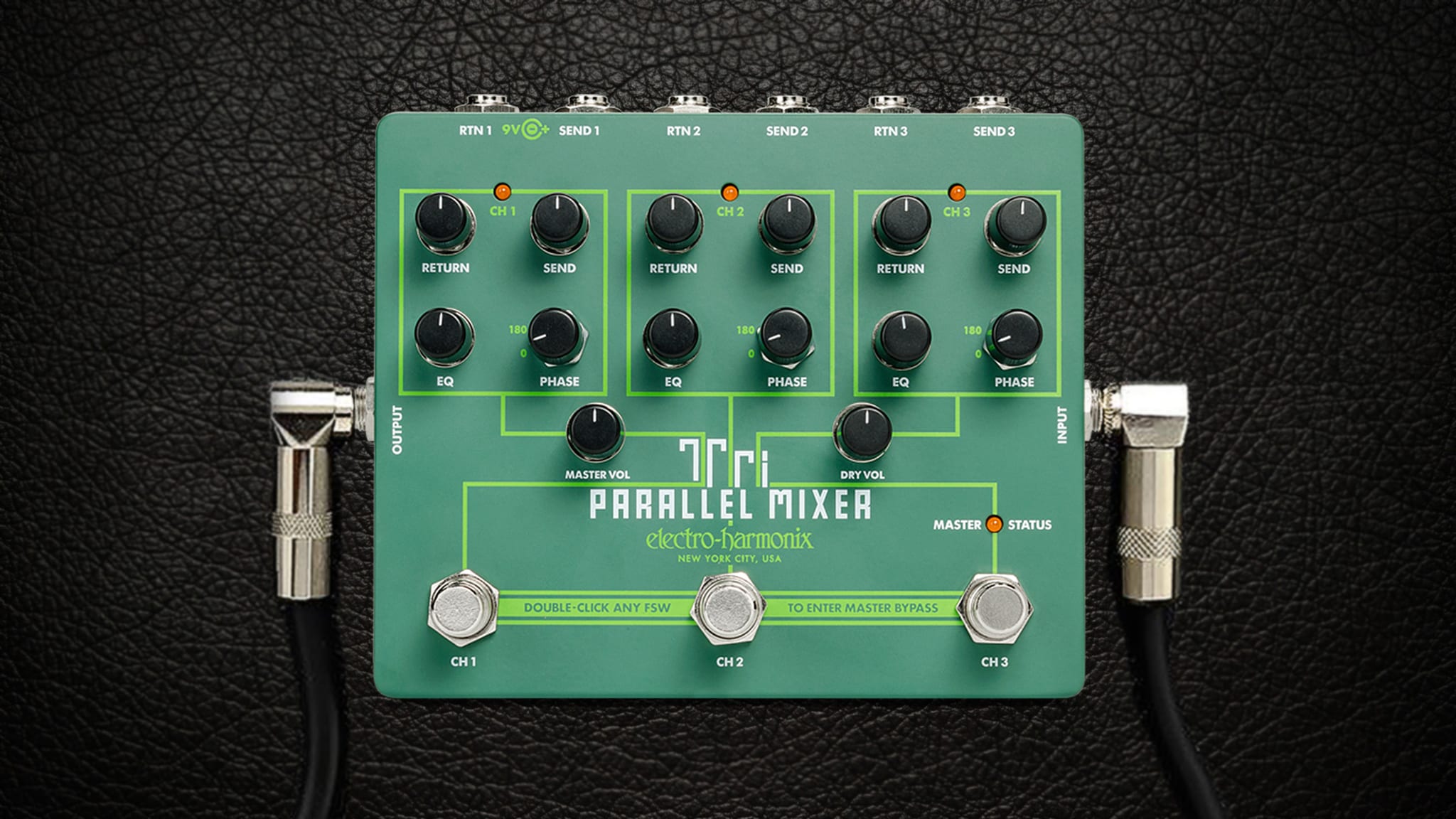

Tri Parallel Mixer

admin — Wed, 14 Oct 2020 09:37:57 +0000

INPUT JACK

The signal present here will be outputted to an active channel’s SEND jack. In master bypass, the input signal connects directly to the OUTPUT jack.

OUTPUT JACK

The master output.

MASTER VOLUME

Sets the master output level of the mixer.

DRY VOL

Sets how much dry signal is sent to the output.

RETURN KNOB

Sets the level of the signal received at the RTN jack before it is sent to the output.

SEND KNOB

This knob sets the level outputted to the SEND jack.

EQ

This knob affects the tonal characteristic of the signal inputted to the RTN jack.

PHASE

Inverts the phase of the signal sent out of the SEND jack.

SEND 1/2/3 JACK

Outputs the signal inputted when its channel is active.

RTN 1/2/3 JACK

This jack is the input for a given channel.

CH 1/2/3 FOOTSWITCH

This switch is used to activate/deactivate a given channel. Double tap any of these switches to enter bypass mode.

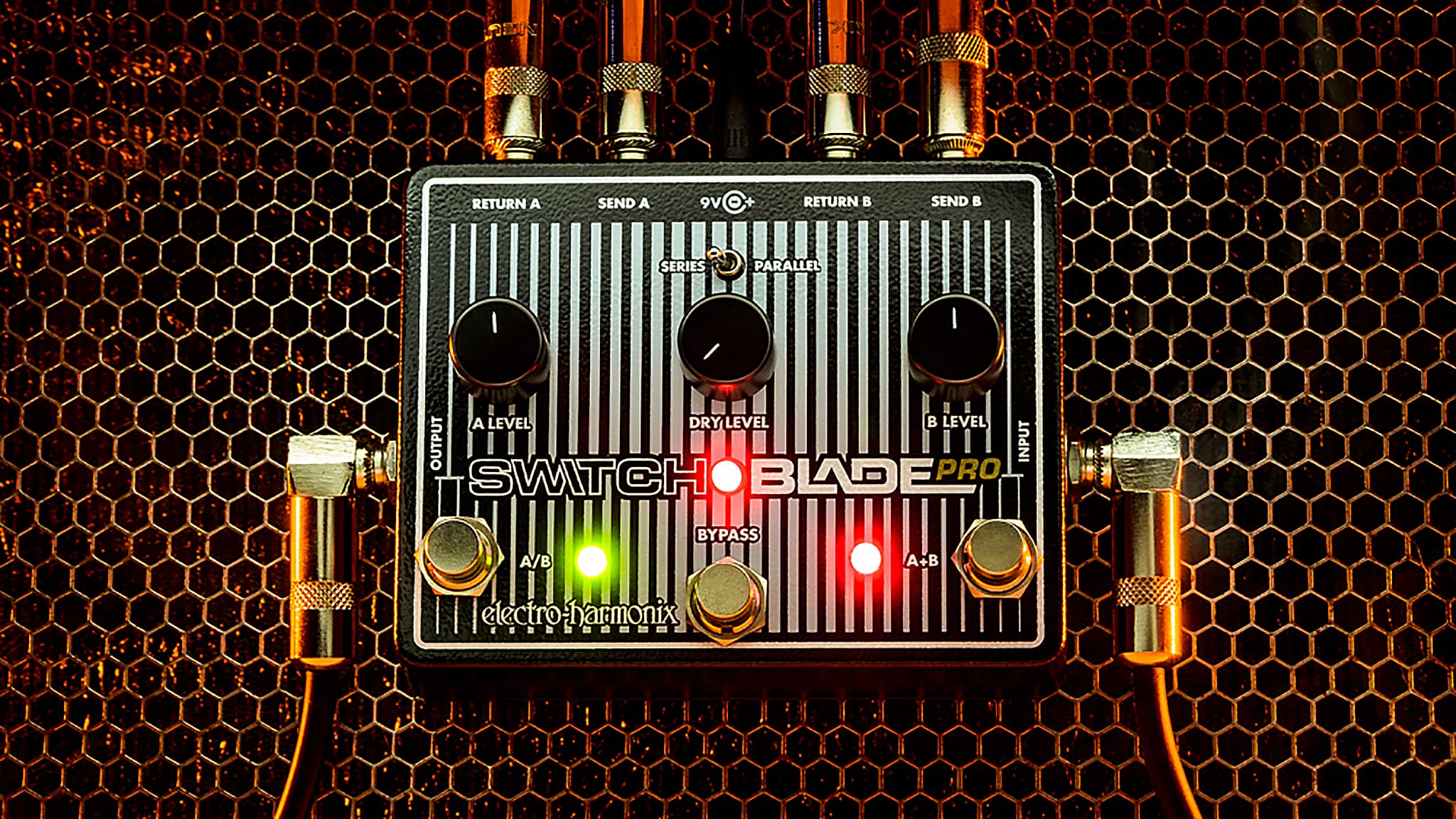

Switchblade Pro

admin — Wed, 14 Oct 2020 09:36:00 +0000

A LEVEL KNOB

Controls the volume of signal going into the RETURN A jack.

DRY LEVEL KNOB

Controls the volume of signal going into the INPUT jack.

B LEVEL KNOB

Controls the volume of signal going into the RETURN B jack.

A/B FOOTSWITCH

This soft footswitch selects between FX loop A (RED) and FX loop B (GREEN).

BYPASS FOOTSWITCH

This soft footswitch engages the SWITCHBLADE PRO, routing the signal on the INPUT jack to the SEND jacks.

A+B FOOTSWITCH

This soft footswitch engages both FX loops A and B, regardless of configuration.

INPUT JACK

This ¼” jack is the audio input.

SEND A JACK

This ¼” jack is an audio output.

RETURN A JACK

This ¼” jack is an audio input.

SEND B JACK

This ¼” jack is an audio output.

RETURN B JACK

This ¼” jack is an audio input.

OUTPUT JACK

Connect the OUTPUT jack into the input of your amplifier, or another effects pedal.

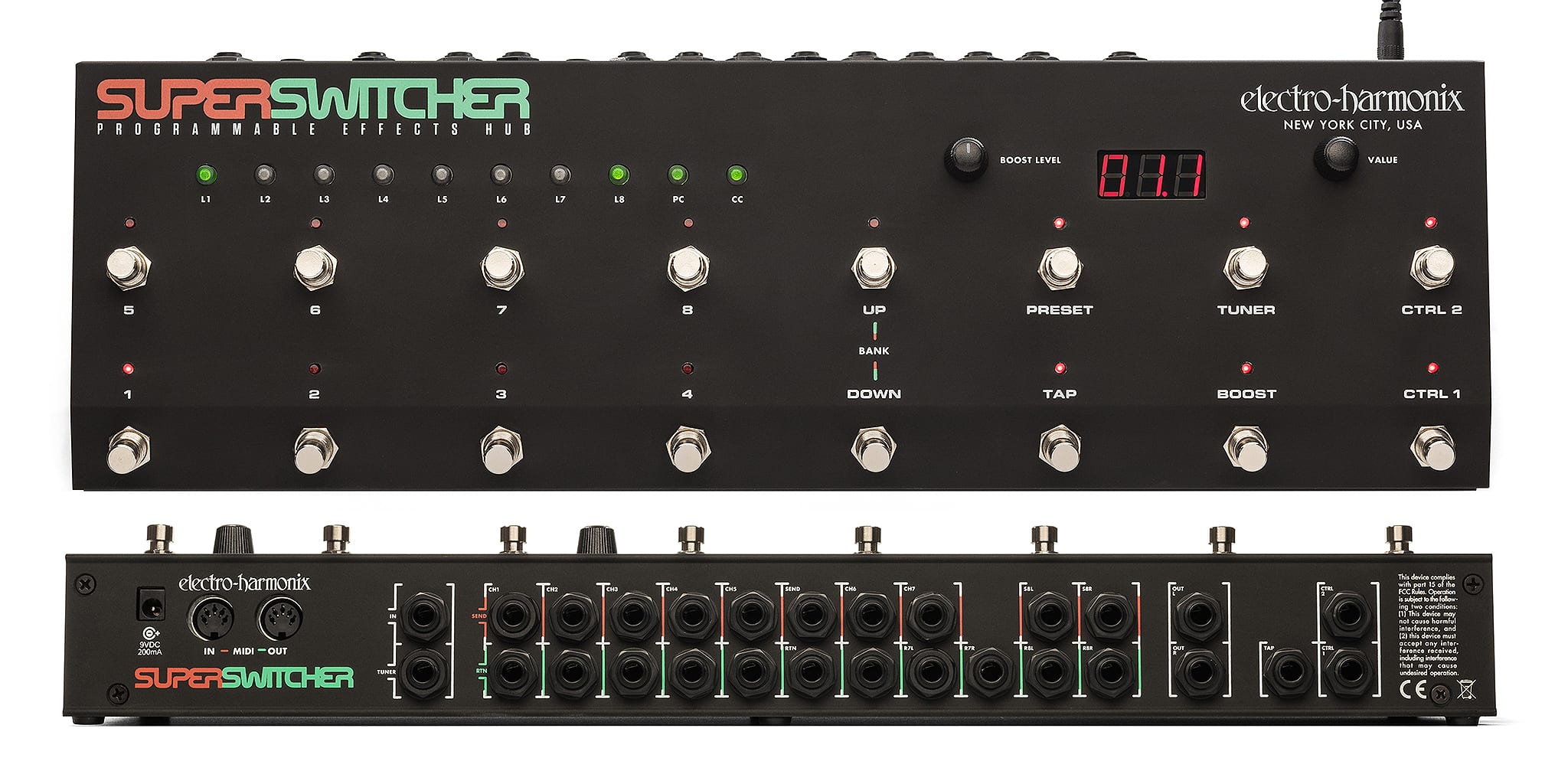

Super Switcher

admin — Wed, 14 Oct 2020 09:34:01 +0000

FOOTSWITCHES 1-8

Engage and disengage the corresponding presets 1-8 for the bank that is currently selected.

FOOTSWITCHES BANK UP AND BANK DOWN

BANK UP and BANK DOWN footswitches increment or decrement through the preset banks. There are 16 banks each with 8 presets.

PRESET FOOTSWITCH

The PRESET footswitch toggles between normal Preset Mode and a manual mode called Instant Access Mode.

TAP FOOTSWITCH

Two or more presses on the TAP footswitch updates the BPM setting for the Super Switcher. The TAP footswitch also controls the tempo signal that is output from the TAP jack.

TUNER FOOTSWITCH

When the TUNER footswitch is pressed, the Super Switcher sends the IN signal directly to the TUNER jack.

BOOST FOOTSWITCH

Turns ON/OFF the stereo output boost.

CTRL 1 FOOTSWITCH

The CTRL 1 footswitch can be used to switch amp channels, trigger remote effects etc. CTRL 1 can be set normally open or closed. CTRL 1 can be set to momentary or latching. CTRL 1 can be set as a master bypass button.

CTRL 2 FOOTSWITCH

The CTRL 2 footswitch can be used to switch amp channels, trigger remote effects, etc. CTRL 2 can be set to normally open or closed. CTRL 2 can be set to momentary or latching.

L1-8 (LOOP1 – LOOP8)

Control and display the on/off status of the corresponding effects loop.

MIDI IN/OUT

IN JACK

TUNER JACK

STEREO SEND & RETURN JACKS

STEREO OUT JACKS

TAP JACK

CTRL 1 & 2 JACKS

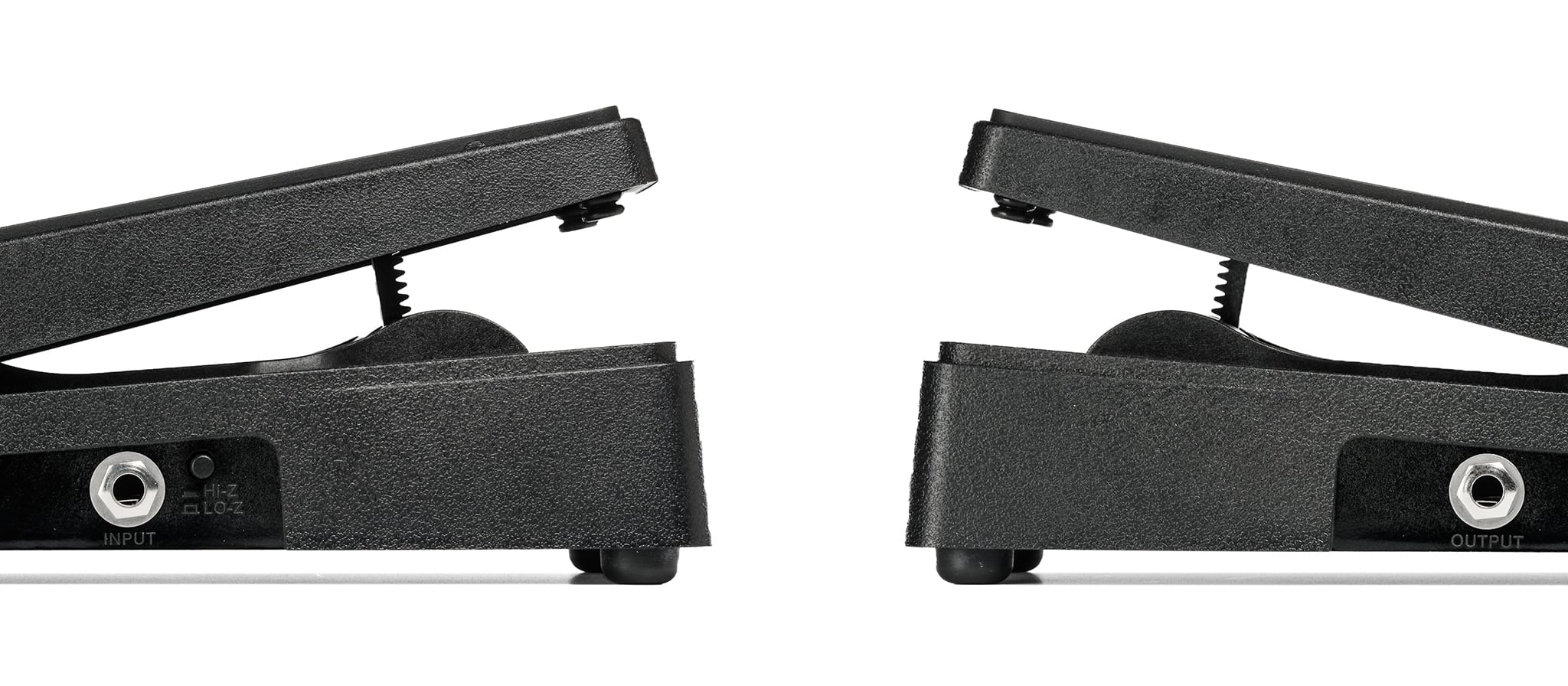

Volume Pedal

admin — Wed, 14 Oct 2020 09:21:36 +0000

OUTPUT JACK

Plug a standard 1/4” instrument cable with TS plug into this jack. Connect the other end of the cable to your amp or other effects pedals.

INPUT JACK

Plug a standard 1/4” instrument cable with TS plug into this jack. Connect the other end of the cable to your instrument.

HI-Z/LO-Z BUTTON

This button allows you to select the impedance of the Volume pedal from LO-Z to HI-Z.

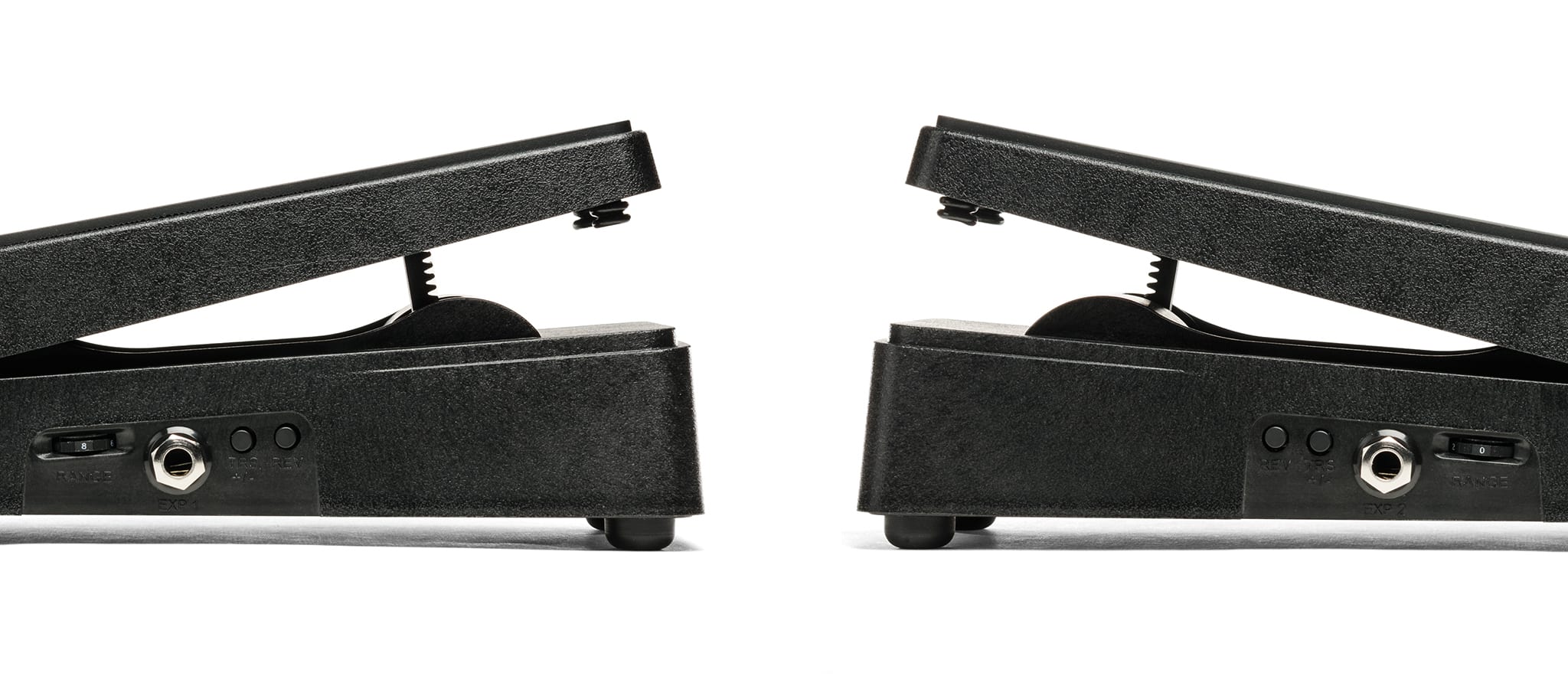

Dual Expression Pedal

admin — Wed, 14 Oct 2020 09:16:37 +0000

REV BUTTON

Reverses the sweep direction of the expression pedal.

TRS +/- BUTTON

Reverses the polarity of the TRS jack for expanded compatibility with other devices.

EXP 2 JACKS

Plug 1/4” TRS cables into these jacks. The other end of the cables should be connected to expression inputs on the devices you want to control.

RANGE KNOB

Adjusts the minimum setting of the expression pedal.

RANGE KNOB

Adjusts the minimum setting of the expression pedal.

EXP 1 JACKS

Plug 1/4” TRS cables into these jacks. The other end of the cables should be connected to expression inputs on the devices you want to control.

TRS +/- BUTTON

Reverses the polarity of the TRS jack for expanded compatibility with other devices.

REV BUTTON

Reverses the sweep direction of the expression pedal.

Single Expression Pedal

admin — Wed, 14 Oct 2020 09:15:24 +0000

TRS OUT JACK

Plug a 1/4” TRS cable into this jack. The other end of the cable should be connected to an expression input on the device you want to control.

RANGE KNOB

Adjusts the minimum setting of the expression pedal.

TRS +/- BUTTON

Reverses the polarity of the TRS jack for expanded compatibility with other devices.

REV BUTTON

Reverses the sweep direction of the expression pedal.

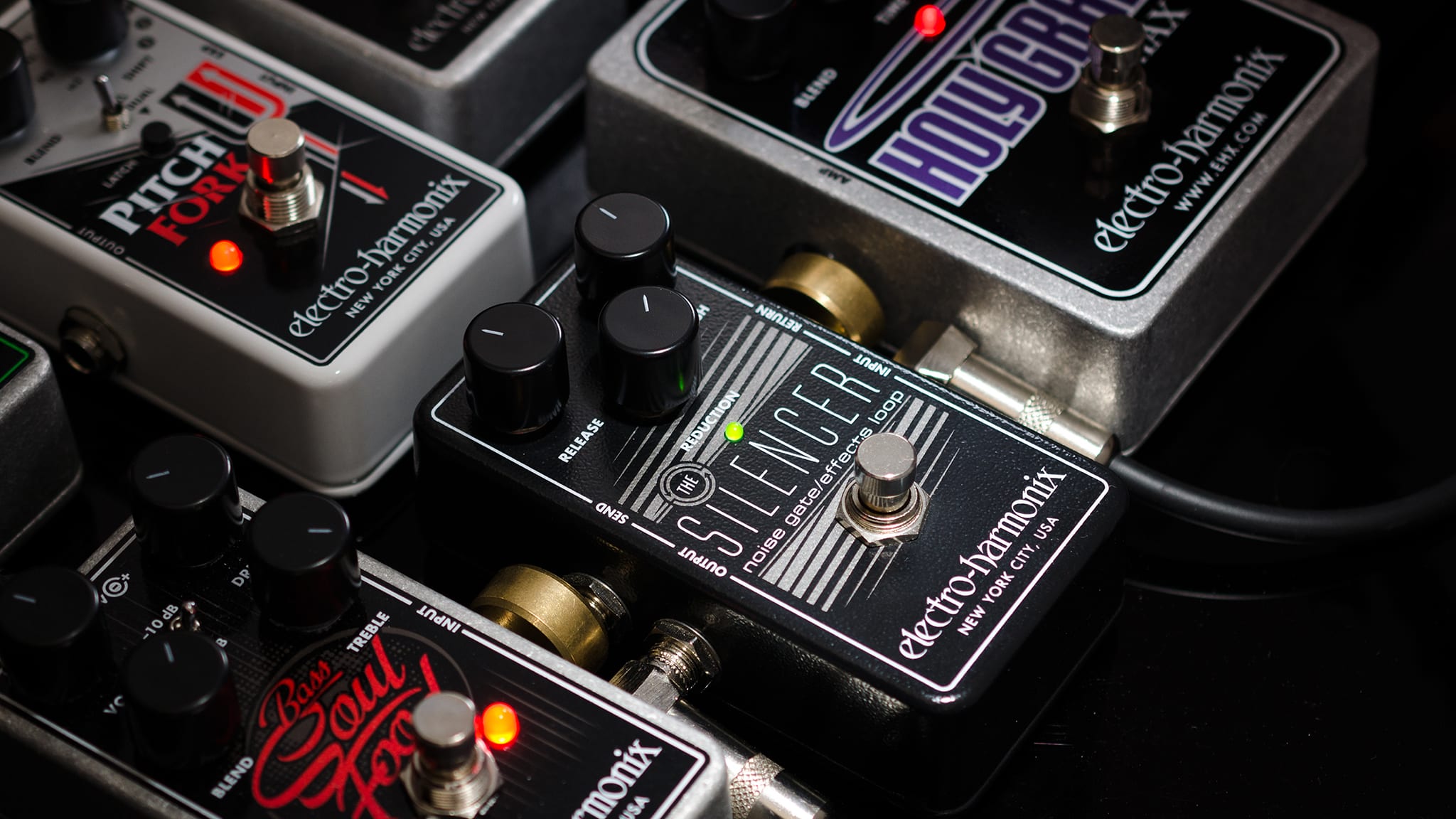

Silencer

admin — Wed, 14 Oct 2020 08:54:58 +0000

RELEASE KNOB

Controls the speed of the envelope signal that closes the gate after the input signal drops below the THRESHOLD setting.

THRESHOLD KNOB

Controls how much level is needed to open the noise gate and allow your signal to pass through.

REDUCTION KNOB

Controls how much the gated signal will be reduced.

FOOTSWITCH & LED

The Footswitch selects whether The Silencer is engaged or in bypass mode.

INPUT JACK

This is the audio input.

RETURN JACK

Connect the end of your effects loop to the RETURN jack.

OUTPUT JACK

This is the audio output.

SEND JACK
