LEFT, RIGHT, DIRECT Buttons

Press the LEFT, RIGHT, and DIRECT buttons to enable their respective outputs. The POG3 remembers the state of these outputs separately for EFFECT and BYPASS modes and their states are saved to each preset.

EXP Button

Press and release the EXP button to enable the expression input. Press and hold the EXP button for 2 seconds to enter the Expression menu.

OLED Graphical Display

Shows essential information such as preset number, preset name, status of all outputs and buttons, and more. Use the NavCoder knob to navigate around the display.

NAVCODER Knob

Allows you to navigate menus, parameters, and presets as well as adjust settings. The NavCoder provides the following movements: 1)Rotate clockwise and counterclockwise to scroll through values, presets, and lists, 2) Center press (push straight down) for preset load/unload and choosing menu options. Center press and hold for preset save, and 3) Directional pad (D-pad) in four directions: up, down, left, and right, allows for easy navigation around menus and screens.

MASTER VOL Knob

Controls the POG3’s overall output volume.

PAN Knobs

Allow each voice to be moved within the stereo field, from hard left to hard right and anywhere in between.

Q Knob

Adjusts the resonance of the FILTER. As Q is turned clockwise, the sound of the filter becomes peakier, making the filter effect more pronounced.

ENV Knob

Adjusts the depth of envelope sweep applied to the Filter frequency. A positive envelope sweeps the frequency upward from the FILTER slider’s setting and a negative envelope sweeps the frequency downward from the FILTER slider’s setting. The ENV knob’s center position disables the envelope.

SPREAD Knob

Independent of the DETUNE slider, teh SPREAD knob introduces a short delay line on the +5th, +1, and +2 voices, and the Dry voice when the DETUNE DRY button is enabled. The two suboctave voices do not go through the Spread effect. The Right channel delay time is 3x longer than the Left delay time producing a wide stereo spectrum. Right delay time maximum is 150ms while the Left maximum is 50ms. Helpful Hint: Disable Dry Detune to make best use of the Spread effect when the POG3 is routed in mono.

DRY Slider

Control the output volume of the dry/unison signal.

VOICE SLIDERS

Controls the volume of the -2, -1, +5th, +1 and +2 octave voices.

Attack Slider

Controls the attack envelope of all octave voices. As the ATTACK slider is pushed upward, the attack time increases producing a volume swell effect. Maximum attack time is 3 seconds. Push the ATTACK slider down to its minimum position to disable the attack effect. The attack effect will also work on the DRY signal whenever the DRY button below it is lit.

FILTER Slider

Controls the cutoff or center frequency of the multimode resonant filter. As the FILTER slider is pushed upward, the filter frequency rises. The FILTER control can be used to shape the tone of the POG3’s voices. All of the generated signals go through the FILTER. The dry signal can also be routed through the FILTER when the DRY button below the FILTER slider is lit. By default, the filter is set to Low-Pass. More filter options are available in the FILTER menu which is accessed by pressing and holding the DRY Filter button for about 2 seconds.

DETUNE Slider

Controls the amount of chorus/doubling effect applied to the +1 and +2 Octave signals. As the DETUNE slider is pushed up, the depth of the detune effect increases. When DETUNE is pushed down to its minimum position, the detune function is disabled. The DETUNE slider may also be applied to the dry signal by enabling the DRY button below the DETUNE slider.

INPUT GAIN Slider

Controls the level of the signal seen at the POG3’s input. The gain of this control ranges from 0.5-3X.

FOCUS Button

Toggles between the original POG octave algorithm and the Pitch Fork style algorithm for the +1 and +2 octave voices. The POG algorithm, which features lower latency, is active with the FOCUS button off. The Pitch Fork algorithm is active when the FOCUS button is lit. Focus allows the +1 and +2 voices to engage in whammystyle pitch bends and freeze effects when using Expression Warp and the two Freeze modes. Please note: Focus changes the algorithm for both the +1 and +2 octave voices simultaneously.

DRY Buttons

The DRY buttons below the ATTACK, FILTER, and DETUNE sliders route the dry signal through the corresponding effects when lit.

PRESET LED

The PRESET LED lights solid green when a preset is loaded and blinks when a loaded preset has been edited. The PRESET LED is off when no preset is loaded, as in LIVE mode.

EFFECT LED

The EFFECT LED lights solid to indicate the POG3 is in effect mode and is off in bypass.

PRESET DOWN Footswitch

Activates the current preset and then, with subsequent presses, scrolls down and loads the next preset. Press and hold this footswitch to scroll down quickly through the presets. Press the PRESET DOWN and PRESET UP footswitches at the same time to deactivate the current preset and return to LIVE mode.

PRESET UP Footswitch

Activates the current preset and then, with subsequent presses, scrolls up and loads the next preset. Press and hold this footswitch to scroll up quickly through the presets. Press the PRESET UP and PRESET DOWN footswitches at the same time to deactivate the current preset and return to LIVE mode.

EFFECT FOOTSWITCH

The EFFECT footswitch toggles the POG3 between effect mode and buffered bypass.

DIRECT OUT JACK

The DIRECT OUT jack is an unbalanced, low impedance output, which carries a buffered version of the signal present at the INPUT jack. Direct Out is enabled or muted by the DIRECT button on the top panel of the POG3. The output impedance presented at this jack is 550Ω. The maximum output level is +12.5dBu.

POWER Jack

Connect the output plug of the factory-supplied AC adapter into the 9VDC power jack. The current requirement is 300mA at 9VDC. The polarity of the power jack is centernegative. The maximum allowable power supply voltage is 10.5 VDC.

L & R OUTPUT Jacks

The LEFT and RIGHT OUTPUT jacks are unbalanced, low impedance outputs. Connect these outputs to amplifiers, a mixer, audio interface, tape recorder or any other suitable device. Use the PAN controls on the front of the POG3 to split or blend the various voices between these two jacks in fun and creative ways. You may also quickly mute or unmute these outputs using the LEFT and RIGHT buttons on the top panel. The output impedance sourced by each of these jacks is 550Ω. The maximum output level is +7.2dBu

USB Port

Connects to the Electro-Harmonix EHXport app running on a Windows or Mac computer. EHXport allows for preset editing and creation, preset transfers—for backup, restore and preset rearrangement within the POG3, firmware updates, and global settings adjustments.

MIDI IN Jack

Connect a standard 5-pin DIN MIDI cable to this connector to receive MIDI Control Change (CC), Program Change (PC), and MIDI Note messages. Using MIDI CC and PC messages, you can control every parameter on the POG3’s top panel. MIDI Note messages allow you to play the POG3 from a MIDI keyboard controller, turning it into an organ or synthesizer module.

MIDI OUT Jack

Connect a standard 5-pin DIN MIDI cable to this connector. MIDI OUT provides a MIDI Thru connection.

INPUT Jack

The 1/4″ INPUT jack is an unbalanced, high impedance input intended for both instruments and line level signals. The Input can accept signal amplitudes up to +6.2dBu. The input impedance presented at this jack is 2MΩ.

EXP / CV IN Jack

Supports either an expression pedal with a 1/4″ TRS plug or a control voltage ranging from 0-5V on a TS plug. Nearly all the top panel features can be controlled via expression pedal or CV and expression control is easy to setup via the expression menu. The Exp/CV In jack will accept any expression pedal that uses a potentiometer ranging from 10kΩ to 100kΩ and has the wiper connected to the tip (T) of the plug.

POWER JACK

An optional 9VDC, center-negative power supply can be connected to the power jack to provide power without a battery. The Lizard King requires 8mA at 9VDC on a center-negative plug. Do not exceed 12VDC at the power jack.

VOLUME KNOB

Sets the output level of the Lizard King.

OCTAVE KNOB

Controls the intensity of the octave effect. Turn clockwise for more octave, or turn counterclockwise for a deeper sound.

SUN/SHADOW SWITCH

Enhances the octave fuzz and clean tones of the Lizard King. With this switch set to SUN, the octave fuzz is boosted with a more driving midrange, and the clean tone accessed by the BLEND knob has more treble and bass frequencies. When the switch is set to SHADOW, the clean tone is unchanged, and fuzz tone is tighter.

BLEND KNOB

Blends between the fuzz/octave and a clean signal with no fuzz. This is useful for maintaining the attack and low-end for bass instruments, and for allowing more harmonic detail for guitar or other chord instruments. When Blend is set fully counterclockwise, the output is a clean tone. As the knob is turned clockwise, more fuzz tone is mixed in. When Blend is set fully clockwise, the output is all octave fuzz effect.

TONE KNOB

Controls the high frequencies of the Lizard King. When the knob is fully clockwise the pedal is “wide open” – passing the full fuzz tone. As this knob is turned counterclockwise, high frequencies are rolled off.

INPUT JACK

Audio input to the Lizard King.

AMP JACK

Audio output from the Lizard King. In bypass mode, the AMP jack is directly connected to the INPUT jack.

FOOTSWITCH & STATUS LED

The footswitch engages or bypasses the effect. The status LED lights when the effect is engaged. The LED is off in bypass mode. The Lizard King employs True Bypass.

POWER JACK

Attach the output plug from the included power supply to the 9V power jack. Current draw: 100mA at 9.0VDC

MODE BUTTON

Press this button to choose your pitch shift direction: Red – PITCH UP, Green – PITCH DOWN, Orange – DUAL MODE

VOL KNOB

Controls the output volume.

BLEND KNOB

Adjusts the output mix from 100% dry to 100% wet.

SWEEP KNOB

Controls pitch bend sweep time, when toggling between bypass and effect and back. The higher the setting, the longer the sweep time which maxes out at 4 seconds. Set SWEEP to minimum to bypass pitch sweep.

SHIFT KNOB

Controls the pitch shift interval relative to the input signal. Whether the pitch is shifted up or down depends on the state of the MODE LED. The intervals are incremented as you move the knob from minimum to maximum. The LED flashes briefly each time a new interval is selected.

INPUT JACK

Audio input to the Pico Pitch Fork.

OUTPUT JACK

Audio output from the Pico Pitch Fork.

FOOTSWITCH & STATUS LED

Footswitch engages or bypasses the effect. The LED color indicates the selected pitch mode. In bypass, the LED is off.

POWER JACK

Attach the output plug from the included power supply to the 9V power jack. Current draw: 100mA at 9.0VDC

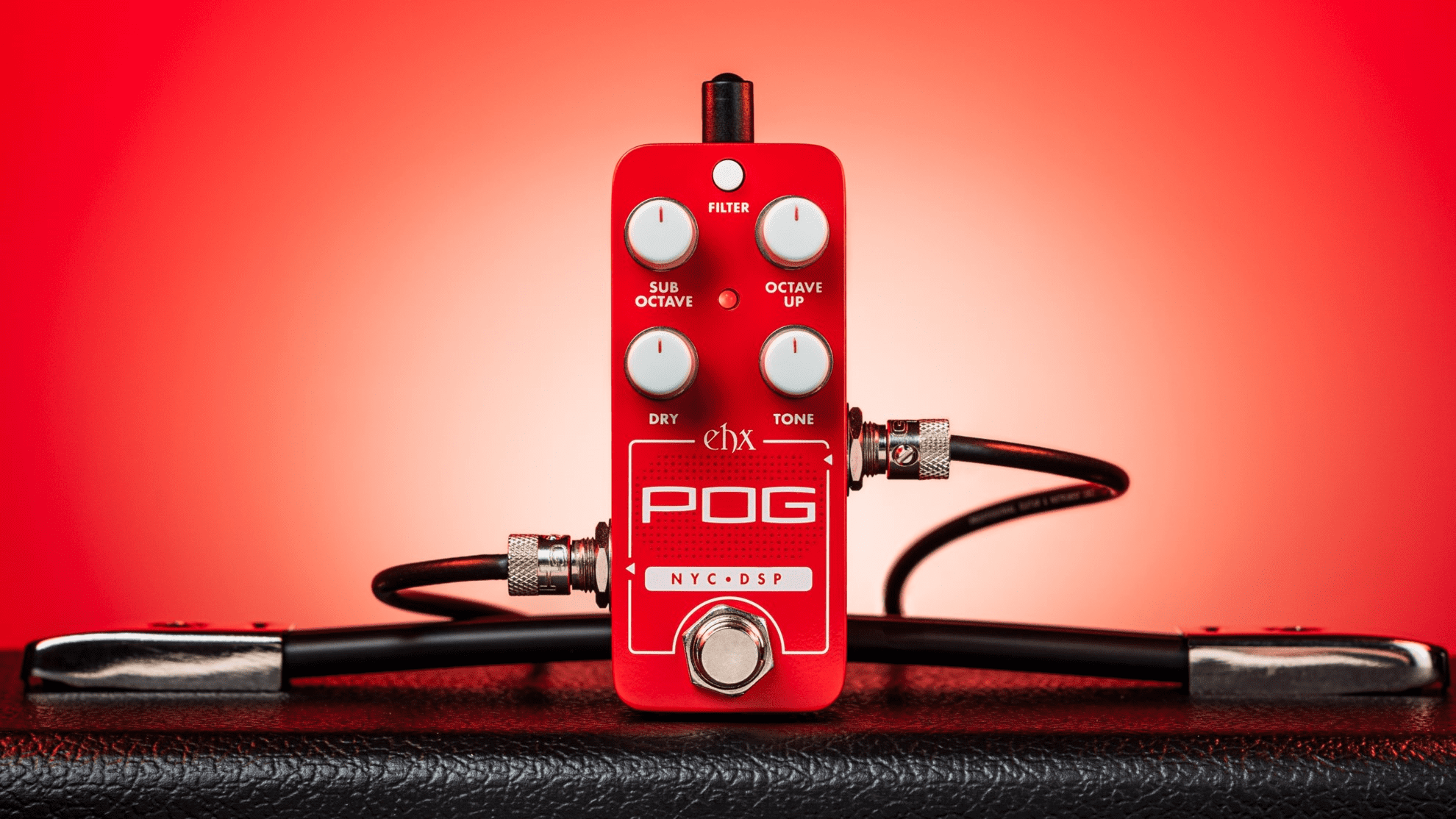

FILTER BUTTON

Press this button to switch between three modes, the color of the LED indicates which mode you are in. Green LED / Tone Mode: In this mode the TONE knob acts as a tilt-EQ. Red LED / Low Pass Filter Mode: In this mode, the TONE knob controls the frequency of a resonant low pass filter. Orange LED / High Pass Filter Mode: In this mode, the TONE knob controls the frequency of a high pass filter.

SUB OCTAVE KNOB

Controls volume of lower octave.

OCTAVE UP KNOB

Controls volume of upper octave.

DRY KNOB

Controls volume of the dry signal.

TONE KNOB

Controls frequency response of your signal based on the state of the FILTER Button / LED.

INPUT JACK

Audio input to the Pico POG.

OUTPUT JACK

Audio output from the Pico POG.

FOOTSWITCH & STATUS LED

The footswitch engages or bypasses the effect. The LED lights when the effect is engaged; its color will be green, orange, or red, depending on the selected filter type. In bypass, the LED is off.

9V POWER JACK

The included 9VDC, center-negative power supply can be connected to the power jack to provide power without a battery. The IHM requires 26mA at 9VDC on a center-negative plug. Do not exceed 10.5VDC at the power jack. When using a 9V battery, plugging into the INPUT jack activates power. The input cable should be removed when the unit is not in use to avoid running down the battery. We recommend alkaline batteries for the IHM.

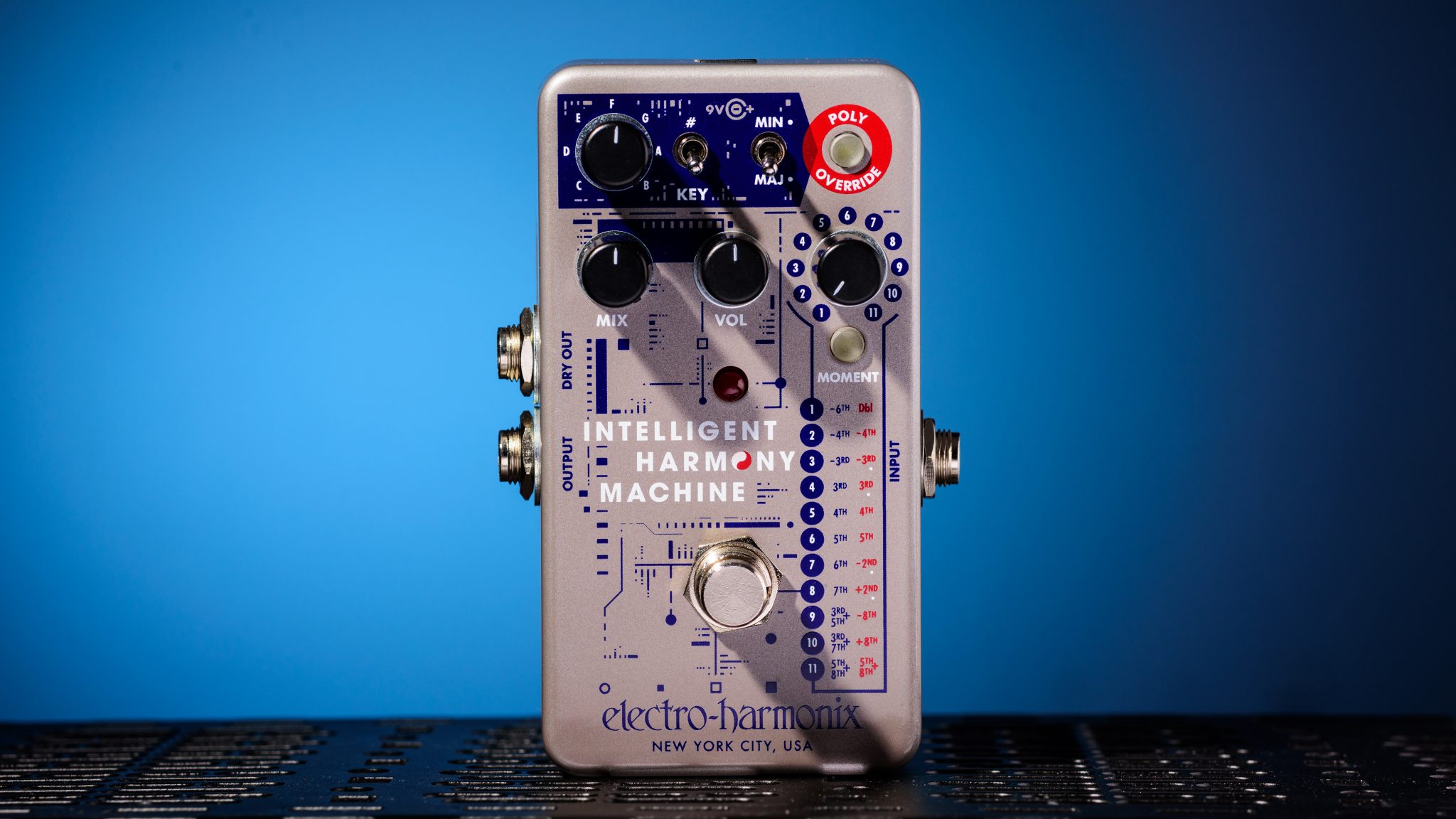

KEY KNOB

This seven-position rotary switch, in conjunction with the toggle switch to its right, sets the key the IHM is in while in Intelligent Mode. This knob has no effect while in Polyphonic Override Mode.

KEY TOGGLE SWITCH

This switch works in conjunction with the knob to its left to set the key of the IHM. With the switch in its upwards position the key is set to the sharp variation of the key set by the KEY knob. With this switch in its downwards position, the key is set to the natural variation of the key set by the KEY knob. This switch has no effect while in Polyphonic Override Mode.

MAJ / MIN TOGGLE SWITCH

In Intelligent Mode this switch sets whether the key (set by the KEY knob and switch) is major or minor. In Polyphonic Override Mode this switch can be used for intervals 3, 4, 7, & 8 (3rds and 2nds) to set whether the pitch-shift interval is a major 3rd/2nd or a minor 3rd/2nd.

POLY-OVERRIDE BUTTON

Use this button to switch between Intelligent Harmony mode and Polyphonic Override mode. When his switch is lit the IHM is in Polyphonic Override mode.

MIX KNOB

Sets the mix between the dry and effect (harmony or pitch-shifted) signal. Fully dry signal at minimum, fully effected signal at maximum.

VOLUME KNOB

Sets the output volume of the IHM.

INTERVAL SELECT KNOB

This eleven-position rotary switch selects the interval of the harmony or pitch shift applied to the effect signal. The exact function of these intervals varies depending on which mode the IHM is in.

MOMENT BUTTON

When this illuminated button is lit, the IHM is in momentary mode. In momentary mode, the effect is only active while the footswitch is held down.

DRY OUT JACK

This jack outputs a buffered version of the dry signal present at the INPUT jack at all times. The source impedance presented at the DRY OUT jack is 680Ω. Pro Tip: when using DRY OUT, you can set MIX to maximum so that only the wet signal is present at the OUTPUT jack. Each output jack now outputs a different set of notes, or a unique signal, that can go to its own amp or be processed individually.

OUTPUT JACK

This is the main output for the IHM. The source impedance presented at the OUTPUT jack is 680Ω.

INPUT JACK

This is the input jack for the IHM. The load impedance presented at the INPUT jack is 2.2MΩ.

FOOTSWITCH and STATUS LED

The footswitch is used to toggle the effect on and off. When the MOMENT button is lit, the IHM is in momentary mode, and the effect will only be active while the footswitch is being held down. With the MOMENT button off, the IHM is in latching mode. In latching mode pressing and releasing the footswitch once will switch between the IHM being active and being in buffered bypass mode. The red LED illuminates to indicate when the IHM is active.

DRY KNOB

Controls the volume level of the DRY signal.

SHIFT 1 KNOB

Controls the effect volume level of SHIFT 1.

SHIFT 2 KNOB

Controls the effect volume level of SHIFT 2.

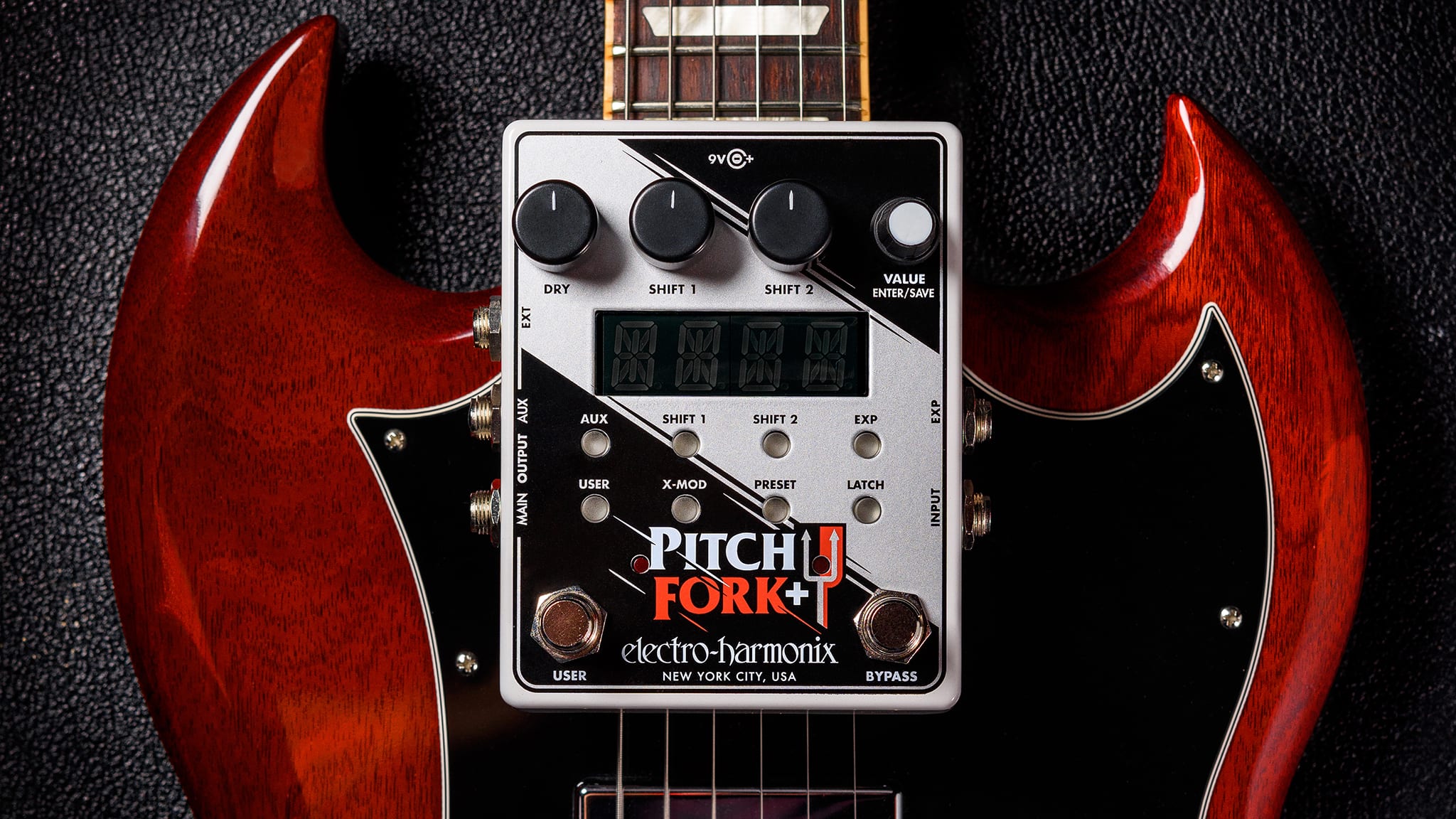

VALUE KNOB

Adjust the selected mode parameter, enter sub-menus, or save presets to memory. A press of VALUE enters sub-menus when applicable. Holding VALUE when in PRESET mode saves a preset.

4-CHARACTER DISPLAY

The 4-character display shows the current parameter value or menu setting for the selected mode. The display shows which option is selected within a mode menu or sub-menu.

AUX

Selects which channel is sent to the AUX output jack. The AUX menu can also select if and how the BYPASS footswitch will affect the AUX output.

SHIFT 1 & SHIFT 2

Select the amount that each shift engine will transpose the input signal. Each SHIFT mode can be set to semitones or octaves covering a total range of +/- 3 octaves. Detuning is also possible in either SHIFT mode.

SHIFT 1 & SHIFT 2

Select the amount that each shift engine will transpose the input signal. Each SHIFT mode can be set to semitones or octaves covering a total range of +/- 3 octaves. Detuning is also possible in either SHIFT mode.

EXP

Sets how the expression pedal or control voltage signal is routed within each of the three sub-menus: FREQ, GLIS, and VOL.

USER

The user programmable footswitch can be assigned to control different parameters or augment features.

X-MOD

Accesses the cross-modulation amount and SHIFT2+DETUNE2 settings.

PRESET

Manages loading and saving presets.

LATCH

Controls how the BYPASS footswitch operates. As on the original Pitch Fork®, the BYPASS footswitch can be set to either latching or momentary mode.

USER FOOTSWITCH AND LED

The USER footswitch’s function is programmable when the USER mode button is selected. The USER footswitch works independently from the BYPASS footswitch and has its own status LED. When the LED is lit, an effect or feature is enabled.

BYPASS FOOTSWITCH AND LED

The BYPASS footswitch toggles between effect on and buffered bypass. In latch mode, each press and release of the footswitch toggles between effect and bypass modes. In Momentary mode, when the footswitch is held down, the glissando effect is on, when the footswitch is released, the PITCH FORK®+ enters bypass. The status LED lights when in effect mode or when glissando is active.

INPUT JACK

Audio input.

EXP JACK

Expression pedal or control voltage (CV) input. The PITCH FORK®+ allows for an expression pedal to be assigned to a number of different parameters.

MAIN OUTPUT JACK

Main audio output.

AUX OUTPUT JACK

Auxiliary audio output.

EXT JACK

TRS input for connecting a generic external foot-controller such as the EHX Triple Foot Controller.

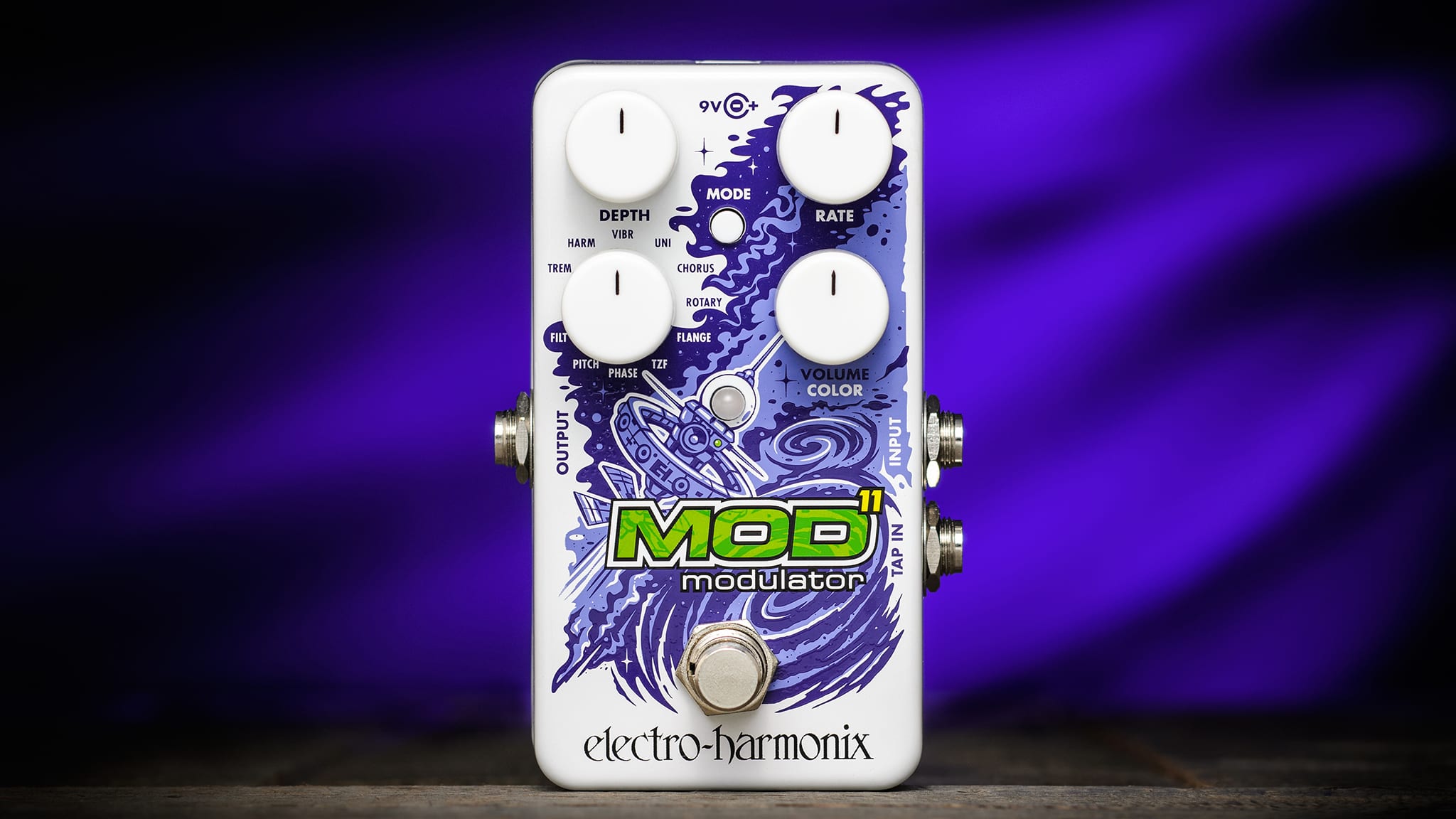

DEPTH KNOB

For most effects, it sets the depth or intensity of the effect. For the Rotary effect, it sets the balance between the rotating drum and horn signals.

RATE KNOB

Sets the modulation speed. In some mod types, turning this knob to minimum enters Filter Matrix Mode.

VOLUME / COLOR KNOB

For the first six modulation effects, this is simply a volume knob. For the last five it has a different use. For FLANGE, TZF, and PHASE it sets the amount of feedback, which increases the resonance and emphasis of the effect. For PITCH it sets the center pitch shift that the modulation happens around. For FILT, it sets the resonance.

MODULATION TYPE KNOB

This knob is an 11-position rotary switch that selects which of the MOD 11’s modulation types is active.

FOOTSWITCH

Press the footswitch to toggle the pedal between bypass and effect modes.

MODE BUTTON

Cycles through the available modes of the active modulation type. Each modulation type has two or three modes that modify the behavior of the active modulation type.

INPUT JACK

This ¼” jack is the audio input.

OUTPUT JACK

This ¼” jack is the audio output.

TAP IN JACK

Connect an external momentary footswitch to this ¼” jack to control the modulation speed by tapping in a tempo.

DRY KNOB

Controls the output volume of the DRY signal at the EFFECT OUT jack.

SUB OCTAVE KNOB

Controls the output volume of the SUB OCTAVE signal.

OCTAVE UP KNOB

Controls the output volume of the OCTAVE UP signal.

VOL KNOB

Sets the output level of the Soul Food section of the Soul POG.

TREBLE KNOB

Acts as a tone control.

DRIVE KNOB

Controls the amount of input gain.

MODE SWITCH

The MODE switch changes how the UP OCTAVE responds to your playing.

POG FOOTSWITCH AND LED

The POG footswitch selects whether the Nano POG is engaged or in buffered bypass.

SOUL FOOD FOOTSWITCH AND LED

The SOUL FOOD footswitch selects whether the Soul Food section is engaged or in bypass mode. When the Soul Food is engaged, its corresponding LED is lit.

INPUT JACK

This ¼” jack is the audio input.

SEND JACK

This ¼” jack can be used to put effects in the signal path between the Soul Food and Nano POG.

EFFECT OUT JACK

This ¼” jack is the audio output.

RETURN JACK

This ¼” jack must be used in conjunction with the SEND jack. Connect this jack to the output of the effect(s) in the loop.

DRY OUT JACK

This ¼” jack outputs a buffered version of the input signal.

EFFECT ORDER SWITCH

This toggle switch, located in the middle of the Soul POG, selects which effect is first in the signal chain. With the switch to the right, the signal chain is SF > POG. With the switch to the left, the signal chain is POG > SF.

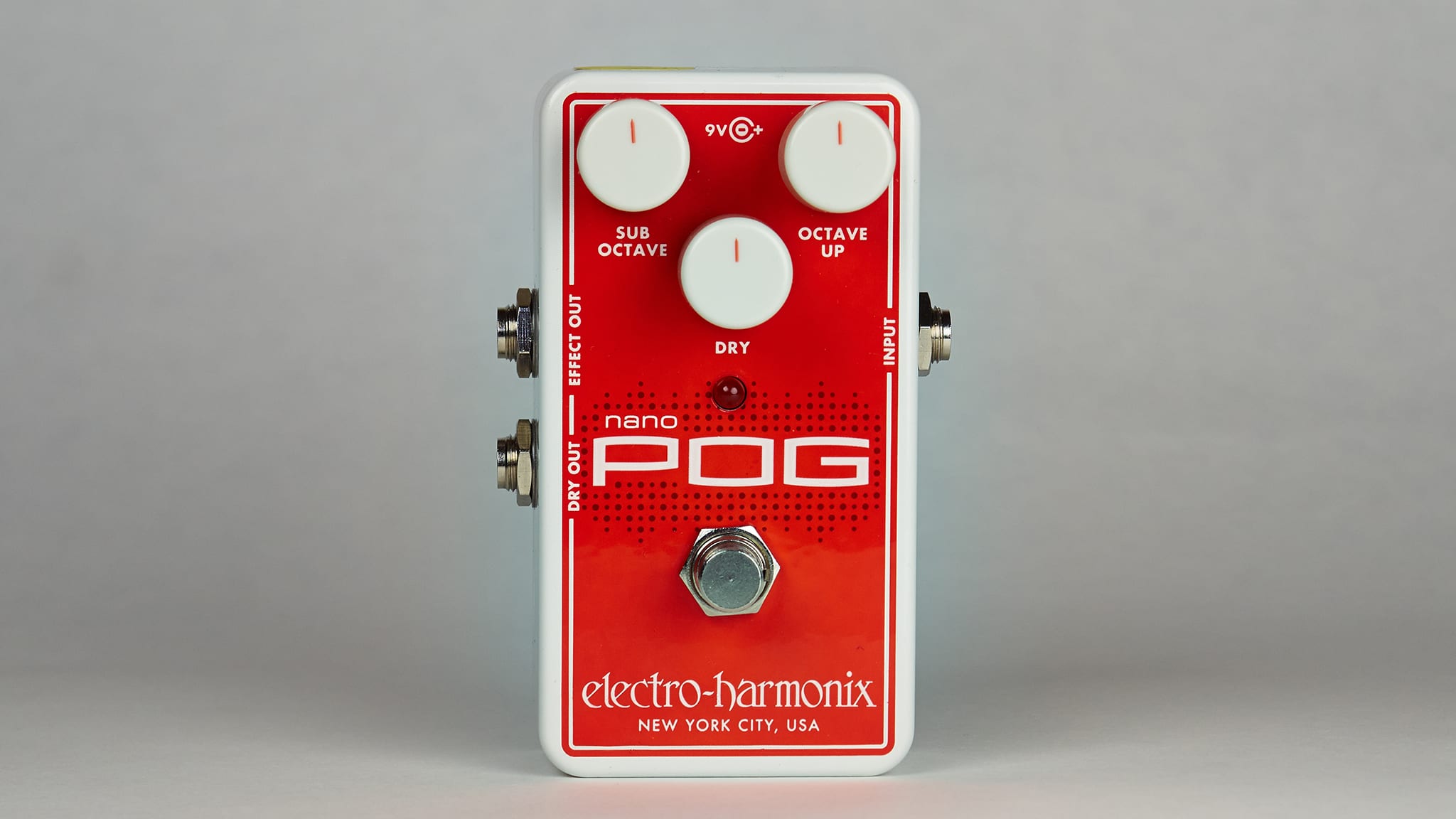

SUB OCTAVE KNOB

Controls the output volume of the SUB OCTAVE signal.

OCTAVE UP KNOB

Controls the output volume of the OCTAVE UP signal.

DRY KNOB

Controls the output volume of the DRY signal at the EFFECT OUT jack.

FOOTSWITCH –

Toggle between effect and bypass modes.

INPUT JACK

This is the audio input.

EFFECT OUT JACK

Outputs the effect.

DRY OUT JACK

Outputs a buffered version of the input signal.
