DRY KNOB

Controls the volume level of the dry signal.

EFFECT KNOB

Controls the volume of the effected signal.

ATTACK KNOB

Controls the fade-in speed of the frozen signal.

DECAY KNOB

Controls the fade-out speed of the frozen signal.

THRESHOLD KNOB

Controls how sensitive the Superego+ is to the input signal.

LAYER KNOB

In SUSTAIN, AUTO, and LATCH modes, use the LAYER knob to set the level of the previously frozen signal when it is mixed with a newly frozen signal.

GLISS KNOB

Controls the speed of the glissando effect.

RATE KNOB

Controls the rate/speed of the selected effect.

DEPTH KNOB

Controls the depth/amount of the selected effect.

EFFECTS SELECTOR KNOB

Selects which of the 11 effects will be applied to the frozen or effected signal when the EFFECT footswitch is engaged.

MODE FOOTSWITCH

Cycles through the five modes indicated by the mode LEDs.

EFFECT FOOTSWITCH

Turns the internal effect section of the Superego+ on and off.

BYPASS FOOTSWITCH

Enables or disables the Superego+ pedal. Depending on what mode the Superego+ is in, this footswitch can function as a freeze trigger, or an auto trigger enable/disable.

INPUT JACK

Plug the output of another effects pedal or an instrument such as guitar, bass, or keyboard into this ¼” input jack.

SEND JACK

If you would like the freeze signal to go through an external effects chain while keeping your dry signal out of this chain, use the Superego+ built-in effects loop.

EXP (EXPRESSION) JACK

Connect a standard TRS expression pedal or control voltage (CV) between 0 to 5V to the EXP input to allow external control over the ATTACK, DECAY, RATE, DEPTH, THRESHOLD, LAYER and GLISS parameters.

OUTPUT JACK

Use this jack for the main output.

RETURN JACK

If using the external effects loop, plug the output of the external effect(s) into the RETURN jack.

EXT (EXTERNAL CONTROL) JACK

Use a TRS three-button external/auxiliary switch to remotely control the footswitches.

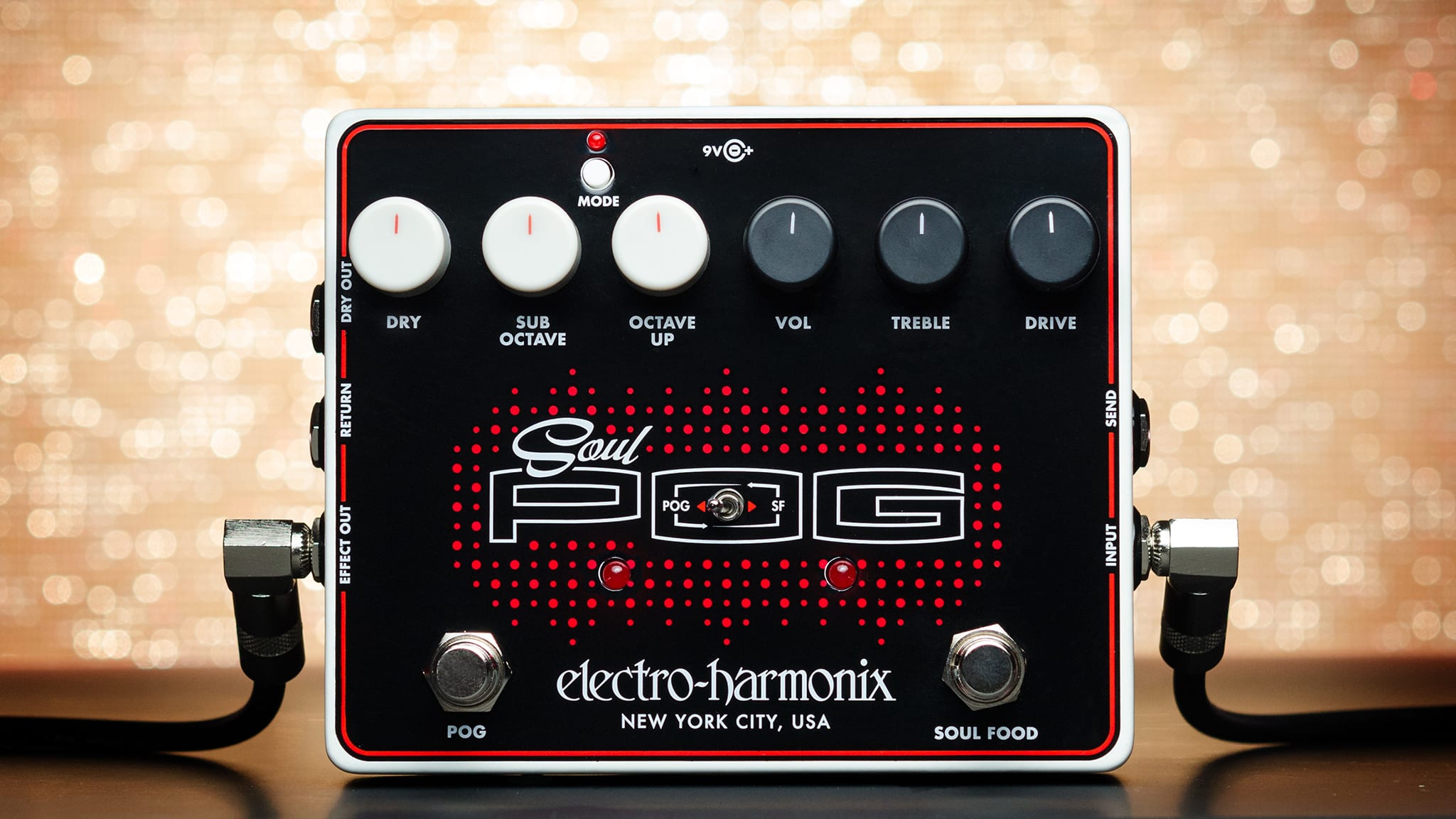

]]> Soul POG https://www.ehx.com/products/soul-pog/ Wed, 14 Oct 2020 09:04:18 +0000 https://www.ehx.com/product/soul-pog/

DRY KNOB

Controls the output volume of the DRY signal at the EFFECT OUT jack.

SUB OCTAVE KNOB

Controls the output volume of the SUB OCTAVE signal.

OCTAVE UP KNOB

Controls the output volume of the OCTAVE UP signal.

VOL KNOB

Sets the output level of the Soul Food section of the Soul POG.

TREBLE KNOB

Acts as a tone control.

DRIVE KNOB

Controls the amount of input gain.

MODE SWITCH

The MODE switch changes how the UP OCTAVE responds to your playing.

POG FOOTSWITCH AND LED

The POG footswitch selects whether the Nano POG is engaged or in buffered bypass.

SOUL FOOD FOOTSWITCH AND LED

The SOUL FOOD footswitch selects whether the Soul Food section is engaged or in bypass mode. When the Soul Food is engaged, its corresponding LED is lit.

INPUT JACK

This ¼” jack is the audio input.

SEND JACK

This ¼” jack can be used to put effects in the signal path between the Soul Food and Nano POG.

EFFECT OUT JACK

This ¼” jack is the audio output.

RETURN JACK

This ¼” jack must be used in conjunction with the SEND jack. Connect this jack to the output of the effect(s) in the loop.

DRY OUT JACK

This ¼” jack outputs a buffered version of the input signal.

EFFECT ORDER SWITCH

This toggle switch, located in the middle of the Soul POG, selects which effect is first in the signal chain. With the switch to the right, the signal chain is SF > POG. With the switch to the left, the signal chain is POG > SF.

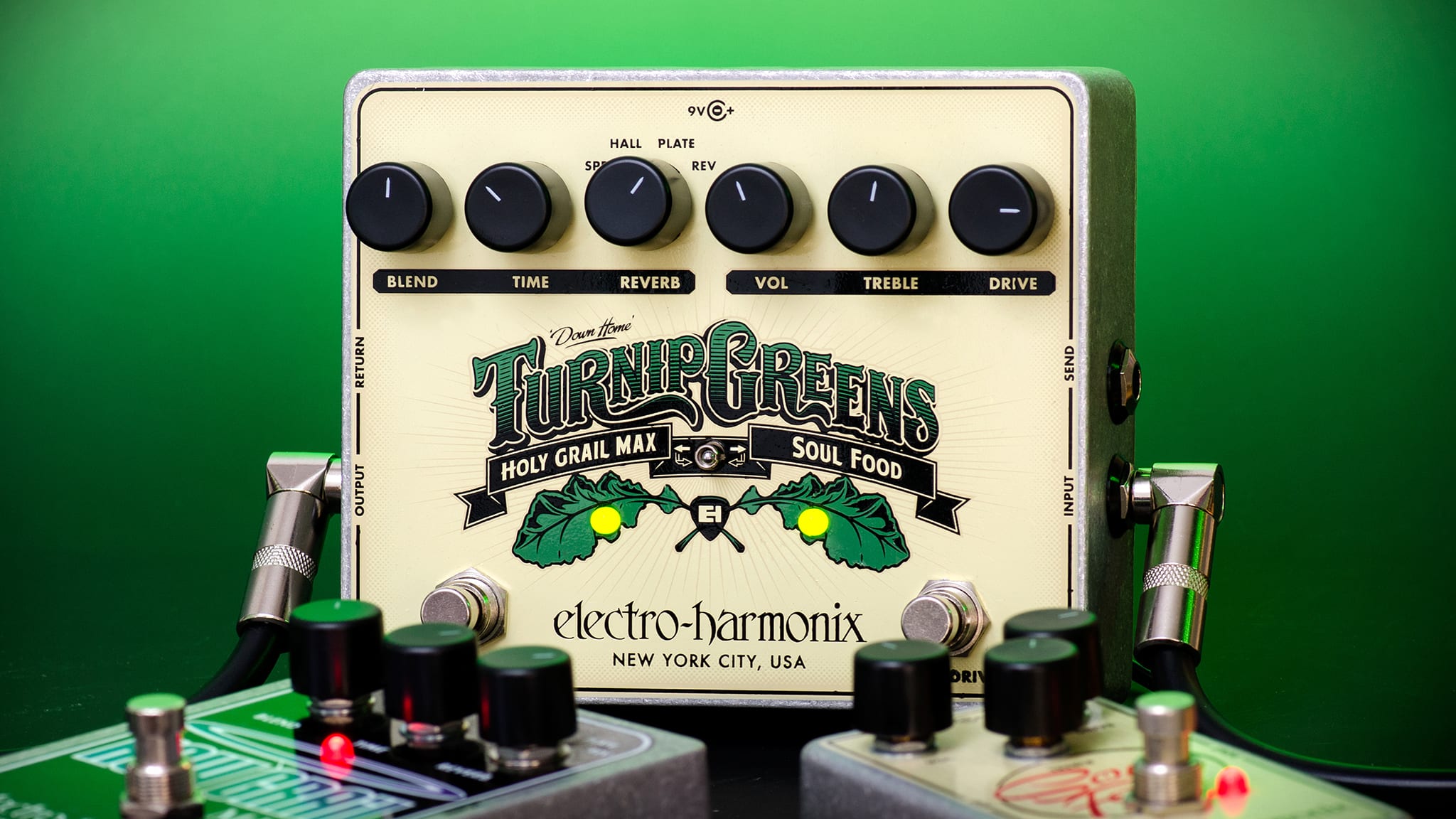

]]> Turnip Greens https://www.ehx.com/products/turnip-greens/ Wed, 14 Oct 2020 08:41:46 +0000 https://www.ehx.com/product/turnip-greens/

BLEND KNOB

Controls the wet/dry mix from 100% Dry to 100% Wet.

TIME KNOB

Adjusts the decay time, or reverb length/size, for the SPRING, HALL and PLATE reverbs. In REVERSE mode, the TIME knob sets the length of time between striking a note and the reverb fade-in.

REVERB SWITCH KNOB

This rotary switch chooses the reverb mode. Clockwise, the modes are SPRING, HALL, PLATE and REVERSE.

VOL KNOB

Sets the output level of the Soul Food section.

TREBLE KNOB

Acts as a tone control.

DRIVE KNOB

Controls the amount of input gain.

EFFECT ORDER SWITCH

This toggle switch selects which effect is first in the signal chain.

REVERB FOOTSWITCH AND LED

The REVERB footswitch selects whether the effect is engaged or in bypass mode.

OVERDRIVE FOOTWITCH AND LED

Selects whether the Soul Food section is engaged or in bypass mode. When the Soul Food is engaged, its corresponding LED is lit.

INPUT JACK

This ¼” jack is the audio input.

SEND JACK

This ¼” jack can be used to put effects in the signal path between the Soul Food and Holy Grail Max.

OUTPUT JACK

This ¼” jack is the audio output.

RETURN JACK

This ¼” jack must be used in conjunction with the SEND jack.

]]>
