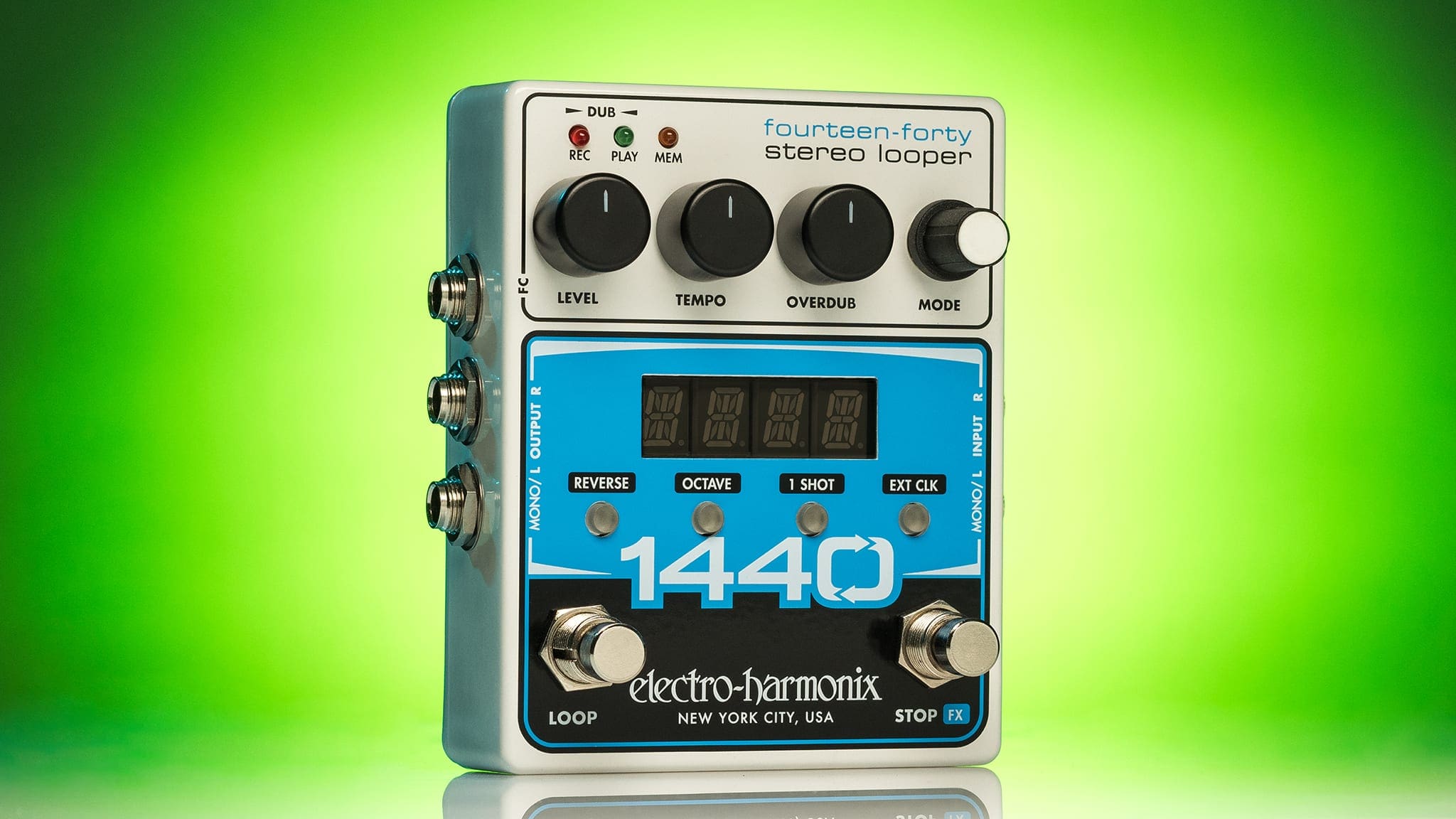

LEVEL KNOB

Controls the output level of the loop being played.

TEMPO KNOB

Controls a loop’s playback and overdub speed.

OVERDUB KNOB

This knob acts like a feedback control for the looper during overdubs.

MODE KNOB AND BUTTON

The MODE knob has two functions: 1) cycling through the available modes and 2) adjusting the value of the selected mode. All modes and values are shown on the 4-digit display. The MODE knob has no pointer because it can be continuously rotated in either direction and can also be pushed like a button.

REVERSE BUTTON

Press the REVERSE button to play the loop in reverse. The REVERSE button glows green when enabled. Reverse can be initiated at any time: during playback, overdub or even before recording a new loop. If REVERSE is enabled upon ending a new loop recording, the loop will immediately playback or overdub in reverse.

OCTAVE BUTTON

Pressing the OCTAVE button causes the speed of the loop to drop by half so that the pitch of the loop goes down one octave and the tempo is halved. If a loop is overdubbed during half-speed mode, returning to normal speed playback causes the pitch of the overdub to go up one octave and the tempo is doubled. The OCTAVE button glows green when enabled. OCTAVE can be used at any time during playback or while overdubbing a loop. If OCTAVE is enabled prior to new loop recording, the loop will immediately playback or overdub at half-speed.

1 SHOT BUTTON

Pressing the 1 SHOT button enables or disables 1 SHOT mode. When 1 SHOT is enabled and its button is lit, the loop plays back once and then stops. You may overdub in 1 SHOT mode as well.

EXT CLK BUTTON

When this button is lit, the 1440 will operate at a tempo set by external MIDI clock. The number of beats per bar are set in EXTC Mode.

LOOP FOOTSWITCH

Use to record, overdub, and playback loops. The LOOP footswitch can also be used to stop and undo/redo loops.

STOP [FX] FOOTSWITCH

The STOP [FX] footswitch can be set to either STOP mode or one of a number of FX modes. Press and hold STOP [FX] for over two seconds to erase the current loop. Five options are assignable to this footswitch.

MONO/L INPUT JACK

Plug the output of your instrument or another effects pedal into this jack. If you use just one input we recommend you use the MONO/L input. The input impedance presented at this jack is 1MΩ. The maximum allowable signal level into this jack is +6 dBu. The input is unbalanced.

R OUTPUT JACK

The Right output signal is sent through this jack. The dry signal present at the Right input jack is output to the R Output jack only. The source impedance of the R Output is 370Ω.

MONO/L OUTPUT JACK

The Left output signal is sent through this jack. The dry signal present at the Left input will be output on the MONO/L Output jack only. The source impedance of the MONO/L Output is approximately 370Ω.

R OUTPUT JACK

The Right output signal is sent through this jack. The dry signal present at the Right input jack is output to the R Output jack only. The source impedance of the R Output is 370Ω.

FC JACK

Use this jack with the Electro-Harmonix Triple Foot Controller to control the 1440 bank up, bank down, and instant undo-redo.

DELAY LVL

Wet/dry control that sets the balance between your dry signal and the delay effects produced by the Grand Canyon.

LOOP LVL

Controls the output volume of the looper’s playback.

FEEDBACK

Controls the number of repeats of the delayed signal.

DELAY

Controls the delay time for all Delay Types.

DELAY / LOOPER MODE BUTTON

Pressing the Mode button cycles you through the three modes, allowing you to seamlessly integrate delay effects into your looping. You can also use an external footswitch to move between modes.

EXP MODE BUTTON

When this button is lit, EXP MODE is enabled. When an external expression pedal or control voltage is connected to the EXP jack on the rear of the Grand Canyon, you can control any combination of knob parameters with your foot. When the EXP MODE button is disabled (button is not lit), the external expression pedal acts as a volume pedal for the dry signal and the signal into the delay effect. This button is also used to set up Expression Settings.

MOMENT BUTTON

While in Delay or Delay+Looper modes, enabling MOMENT changes the function of the BYPASS/STOP footswitch to only allow the delay effects while the footswitch is pressed down. The delay effects are bypassed when the footswitch is released. When MOMENT is disabled, the BYPASS/STOP footswitch works like a normal latching footswitch, toggling between bypass and effect modes with each press and release of the footswitch.”

TAILS BUTTON

When TAILS is enabled, the echoes continue to repeat after the pedal switches to bypass or to Looper mode, with the number of repeats set by the FEEDBACK knob.

PING PONG BUTTON

The PING PONG function bounces each delay repeat back and forth between the left and right outputs.

TAP DIVIDE BUTTONS AND LEDS

The TAP DIV function sub-divides the tempo tapped in via the TAP/LOOP footswitch to create shorter or longer delay times in sync with your tap time.

DELAY TYPE KNOB

Selects which Delay Type is active.

MINIATURE PARAMETER KNOBS

Functions change depending on the selected Delay Type. On the face of the Grand Canyon, below the Mini Knobs, there is a table listing the available Mini Knob functions for each Delay Type.

TAP/LOOP BUTTON

While in Delay mode, press and release the TAP/LOOP footswitch two or more times to set the delay time with your foot.

BYPASS/STOP

The BYPASS footswitch works like a standard latching footswitch when the MOMENT button is not lit: press and release to toggle between bypass and effect modes.

R OUT JACK

This is the right output jack in a stereo setup.

L OUT JACK

Use this output for a mono setup. In a stereo setup this is your left output.

EXP JACK

Connect an expression pedal with a TRS plug to this jack to allow external control over any of the Grand Canyon’s knobs, or use it like a volume pedal on the dry signal before it hits the delay effects.

FSW JACK

Connect an external momentary footswitch to this ¼” jack.

INPUT JACK

This ¼” jack is the audio input.

FX LVL KNOB

Controls the output volume of the delay effect.

DELAY KNOB

Controls the delay time, from a minimum position of 5 milliseconds to a maximum of 3 seconds.

MODE KNOB

An 11-position rotary switch that selects which delay mode is active.

FEEDBACK KNOB

Controls the number of repeats of the delayed signal.

TAP/DIVIDE SWITCH

Controls the Tap Divide setting. When the delay time is set using tap tempo, this button controls the division of the tapped tempo.

INPUT JACK

This is the audio input.

TAP IN JACK

Connect an external momentary footswitch to control the delay time by tapping in a tempo.

OUTPUT JACK

This ¼” jack is the audio output of the CANYON.

FOOTSWITCH

Press this footswitch to switch the pedal between bypass and effect modes. The footswitch can also be used to set the delay time by tapping it at least two times.

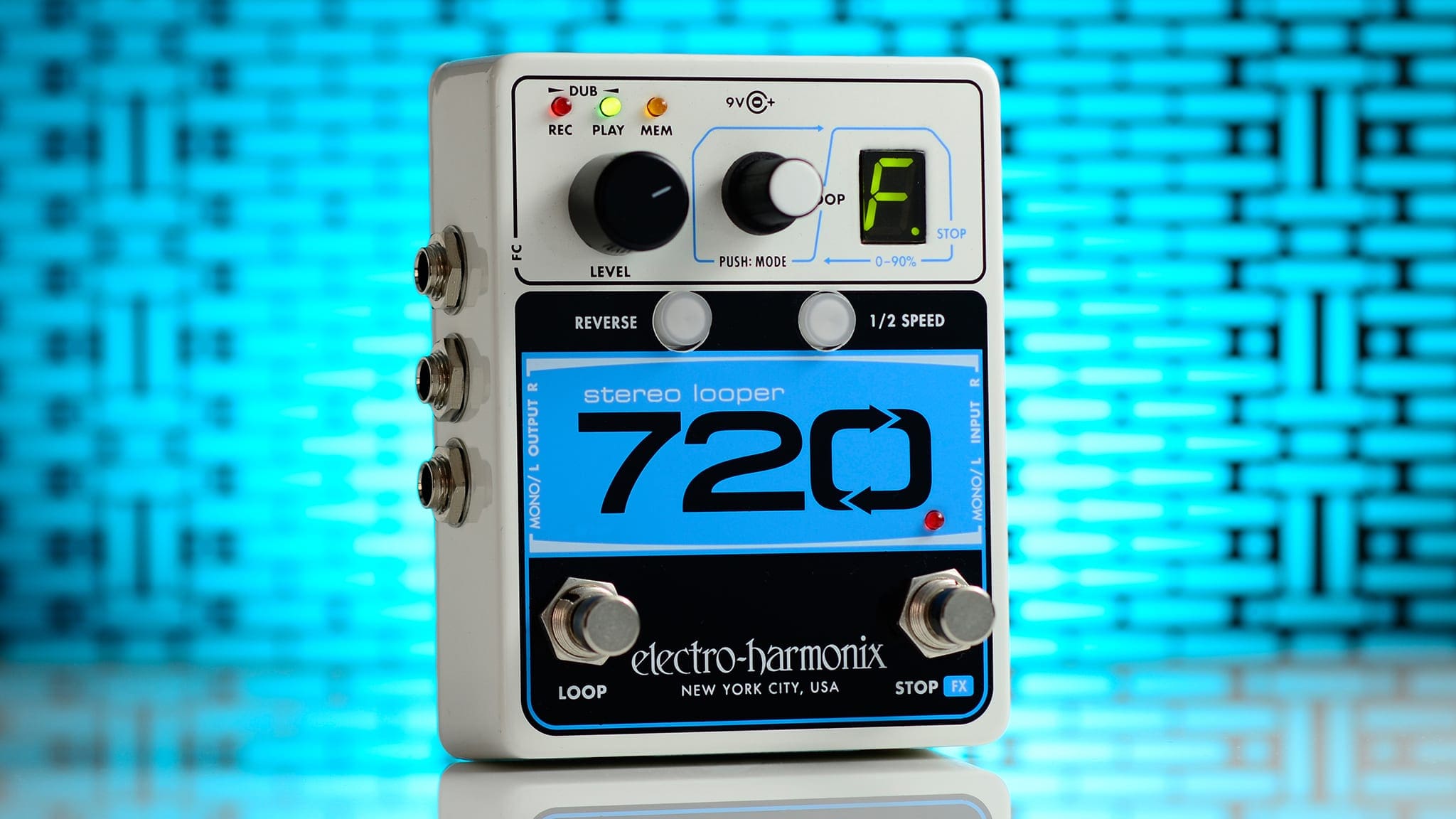

LEVEL KNOB

Controls the output level of the Loop.

LOOP FOOTSWITCH

Use the LOOP footswitch to record, overdub, and playback loops. The LOOP footswitch can also be used to stop and undo-redo loops.

STOP/FX FOOTSWITCH

The STOP/FX footswitch can be set to either STOP mode or FX mode. When in STOP mode, a dot appears on the display next to the STOP label. When in FX mode, the dot is off.

REC LED

Indicates when a loop is being recorded or overdubbed.

PLAY LED

Indicates when a loop is being played or overdubbed.

MEM LED

Indicates loop audio is in memory for the current loop bank.

LOOP KNOB & PUSH: MODE BUTTON

The LOOP knob allows you to select loops and the PUSH: MODE button has two functions: 1) to cycle through three available modes, and 2) to adjust the value of that mode.

REVERSE BUTTON

Press the REVERSE button to play the loop in reverse. The REVERSE button glows red when enabled. Reverse can be used at any time to playback or overdub a loop.

½ SPEED BUTTON

Press the ½ SPEED button to make the pitch of the loop to go down one octave and half the tempo. The ½ SPEED button glows red when enabled and can be used at any time during playback or while overdubbing a loop.

MONO/L INPUT

Plug the output of your instrument or another effects pedal into this jack.

R INPUT

Use this jack for stereo. Plug the output of your instrument or another effects pedal into this jack.”

MONO/L

The Left output signal is sent through this jack.

R OUTPUT

The Right output signal is sent through this jack.

FC JACK

¼” TRS Foot Controller Jack. Use this jack with popular three button foot controller units to control the 720 bank up, bank down, and instant undoredo.

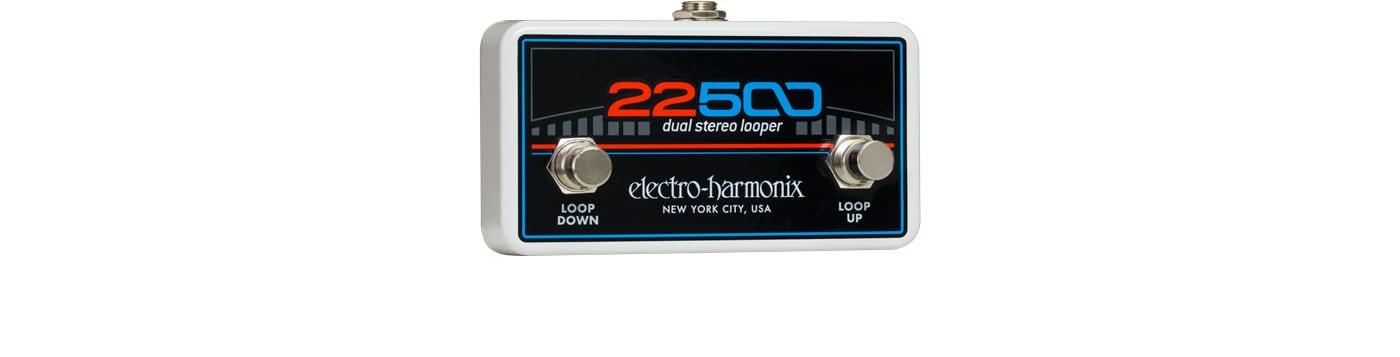

LOOP DOWN FOOTSWITCH

Press and release the LOOP DOWN footswitch to decrement the Loop Bank number by 1.

LOOP UP FOOTSWITCHES

Press and release the LOOP UP footswitch to increment the Loop Bank number by 1 on the 22500 main unit.

OUTPUT JACK

Connect the foot controller to the 22500 looper.

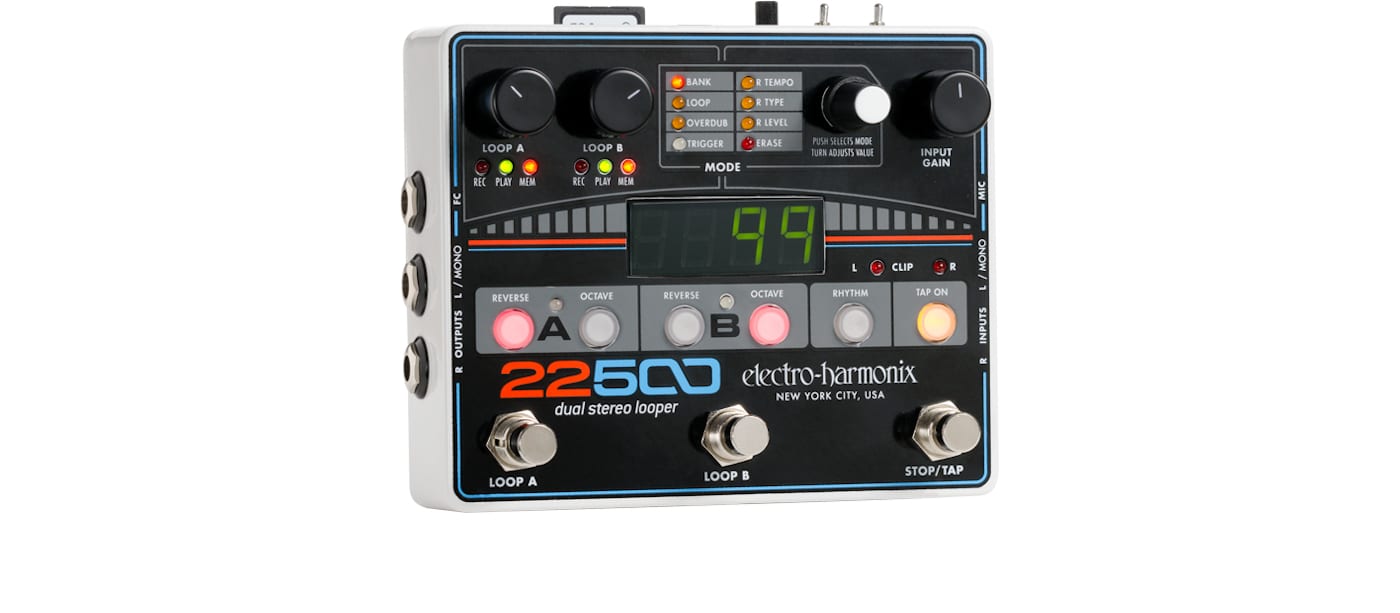

LOOP A & B KNOBS

Set the output volume for Loop A & B at all times. This knob is always live and does not save with loop banks.

MODE ENCODER

Push selects the mode and turn adjusts the value.

INPUT GAIN KNOB

Sets the overall gain for both the LEFT and RIGHT inputs equally. INPUT GAIN also sets the output level of your dry signal at the output jacks.

REVERSE BUTTON

Loop A and Loop B each have a REVERSE button allowing you to enable/disable the Reverse function for each loop independently.

OCTAVE BUTTON

Loop A and Loop B each have an independent OCTAVE button. Each press of an OCTAVE button cycles the respective loop’s speed through the following choices: half speed or down, double speed or up, original speed.

RHYTHM BUTTON

When this button glows orange, RHYTHM is enabled and the STOP/TAP FSW starts and stops the Rhythm loop.

TAP ON BUTTON

Press this button to enable/disable TAP ON and allow the STOP/TAP FSW to perform tap tempo for the loops and Rhythm.

LOOP A FOOTSWITCH

Controls much of the activity for its respective loops.

LOOP B FOOTSWITCH

Controls much of the activity for its respective loops.

STOP/TAP FSW

The STOP/TAP FSW performs the following 3 functions: 1. Stop Everything, 2. Start/Stop Rhythm loops, and 3. Tap Tempo.

L/MONO INPUT

¼” Left Instrument/Line Input Jack. Plug the output of your instrument or another effects pedal into this jack. If you use just one input we recommend you use the L/MONO input.

R INPUT

¼” Right Instrument/Line Input Jack. Plug the output of your instrument or another effects pedal into this jack. Use this jack for stereo recording or for recording a second instrument.

MIC INPUT

XLR Input Jack for microphones. To use the MIC INPUT, set the LEFT INPUT switch to MIC.

MONO/L OUTPUT

The Left output signal is sent through this jack. The dry signal present at the Left input will be output on the MONO/L Output jack.

R OUTPUT

The Right output signal is sent through this jack. The dry signal present at the Right input jack is output to the R Output jack.

FC JACK

Insert a standard, mono ¼” instrument cable into the FC jack and connect the other end of the cable to the optional 22500 Foot Controller. The 22500 Foot Controller can be used to scroll up or down through the 22500’s loop banks.

USB PORT

When you connect your 22500 to a computer through the USB connector, it will display the SD card inside the 22500 as a “Removable Disk.” You may then copy files to and from the SD card.

SDHC Memory Card

The 22500 comes supplied with an 8GB card which allows for a total loop recording time of up to 12 hours.

MIC TRIM KNOB

The MIC TRIM knob allows you to fine tune the gain of the XLR MIC input jack.

LEFT INPUT TOGGLE SWITCH (MIC/INST)

Set LEFT INPUT to the down position for the ¼” instrument input jack or set to the up position for the XLR microphone input.

PHANTOM POWER TOGGLE SWITCH (ON/OFF)

When On position, phantom power is applied to the XLR MIC input jack. Set to the down position to disable phantom power on the microphone input.

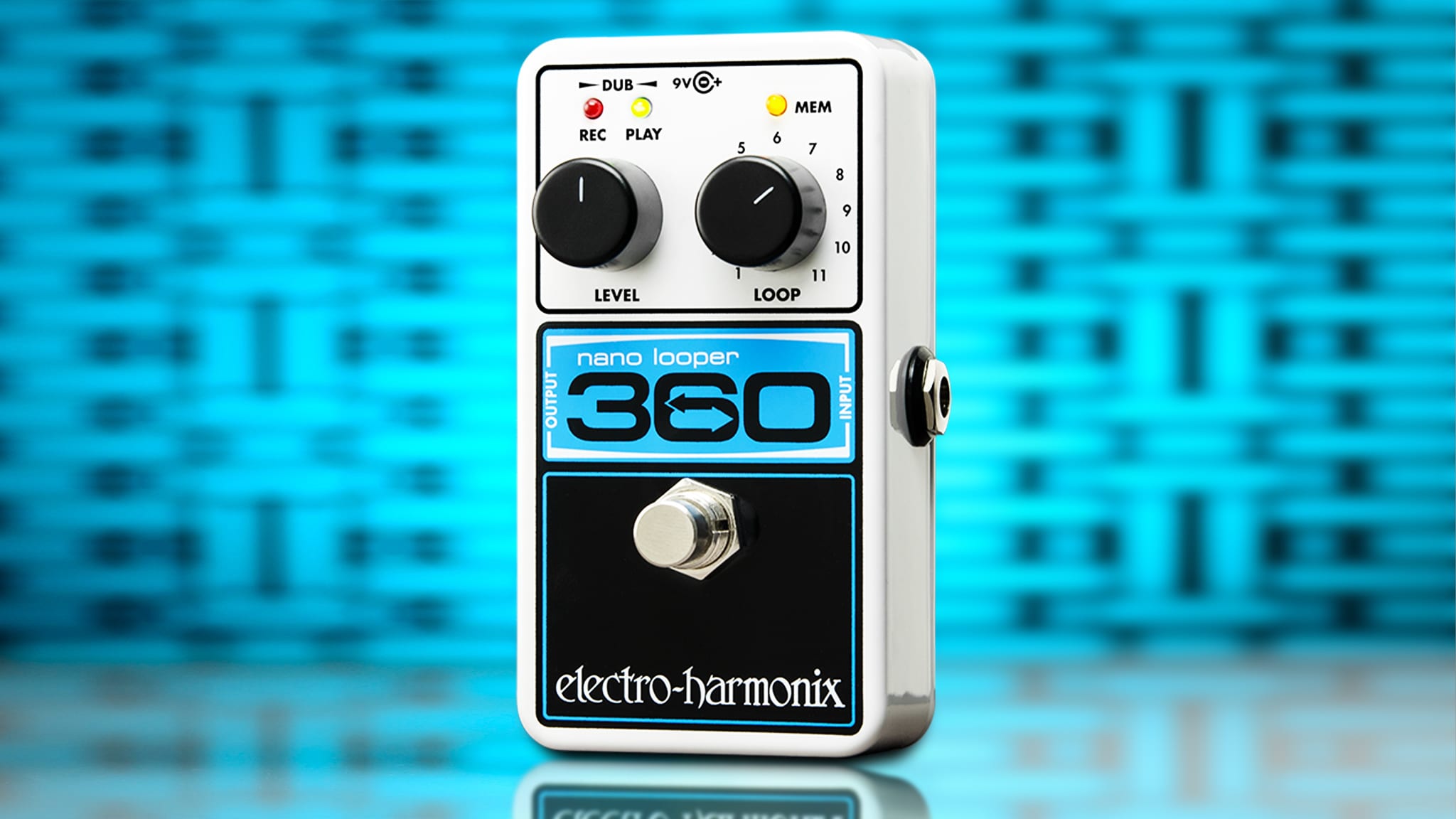

LEVEL KNOB

Controls the output level of the Loop.

LOOP KNOB

Selects loop number: 1 to 11.

FOOTSWITCH

Start and stop your loops.

INPUT JACK

This is the audio input.

OUTPUT JACK

This is the audio output.

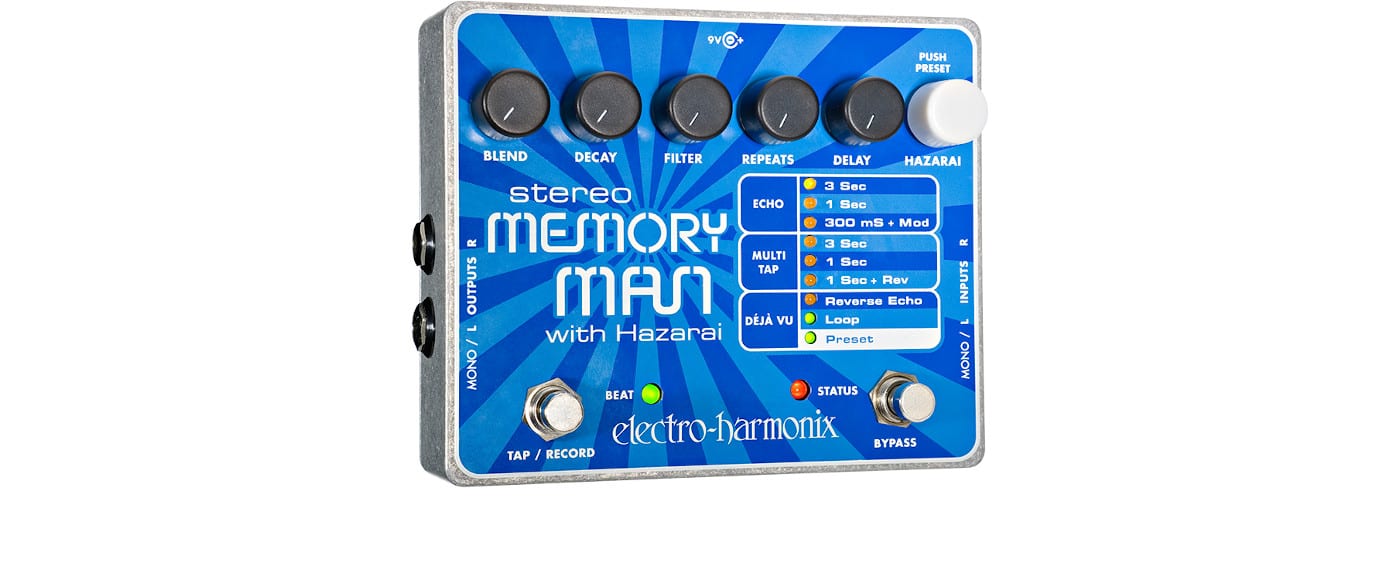

BLEND KNOB

The BLEND knob is a wet/dry control for the effect outputs.

DECAY KNOB

The function of the DECAY knob changes depending on the mode selected.

FILTER KNOB

Controls both a Low Pass or High Pass Filter on the delayed signal.

REPEATS KNOB

Acts like a feedback control.

DELAY KNOB

Sets the Delay Time from a minimum of 0.2 mS to a maximum of 3 seconds.

HAZARAI KNOB

The HAZARAI knob is a rotary encoder enabling the user to scroll through the 8 modes.

TAP / RECORD FOOTSWITCH

The TAP/RECORD footswitch has multiple functions assigned to it depending on the currently selected mode and how long the switch is pressed for.

BYPASS FOOTSWITCH / STATUS LED

The Bypass footswitch toggles between effect mode and bypass mode.

MONO/L AND R INPUT JACKS

When using the SMMH with only one input we suggest you use the MONO/L input.

MONO/L AND R OUTPUT JACKS

Plug your input into the MONO/L jack and then connect the MONO/L and R Outputs to two separate amps or inputs on a mixing board.
