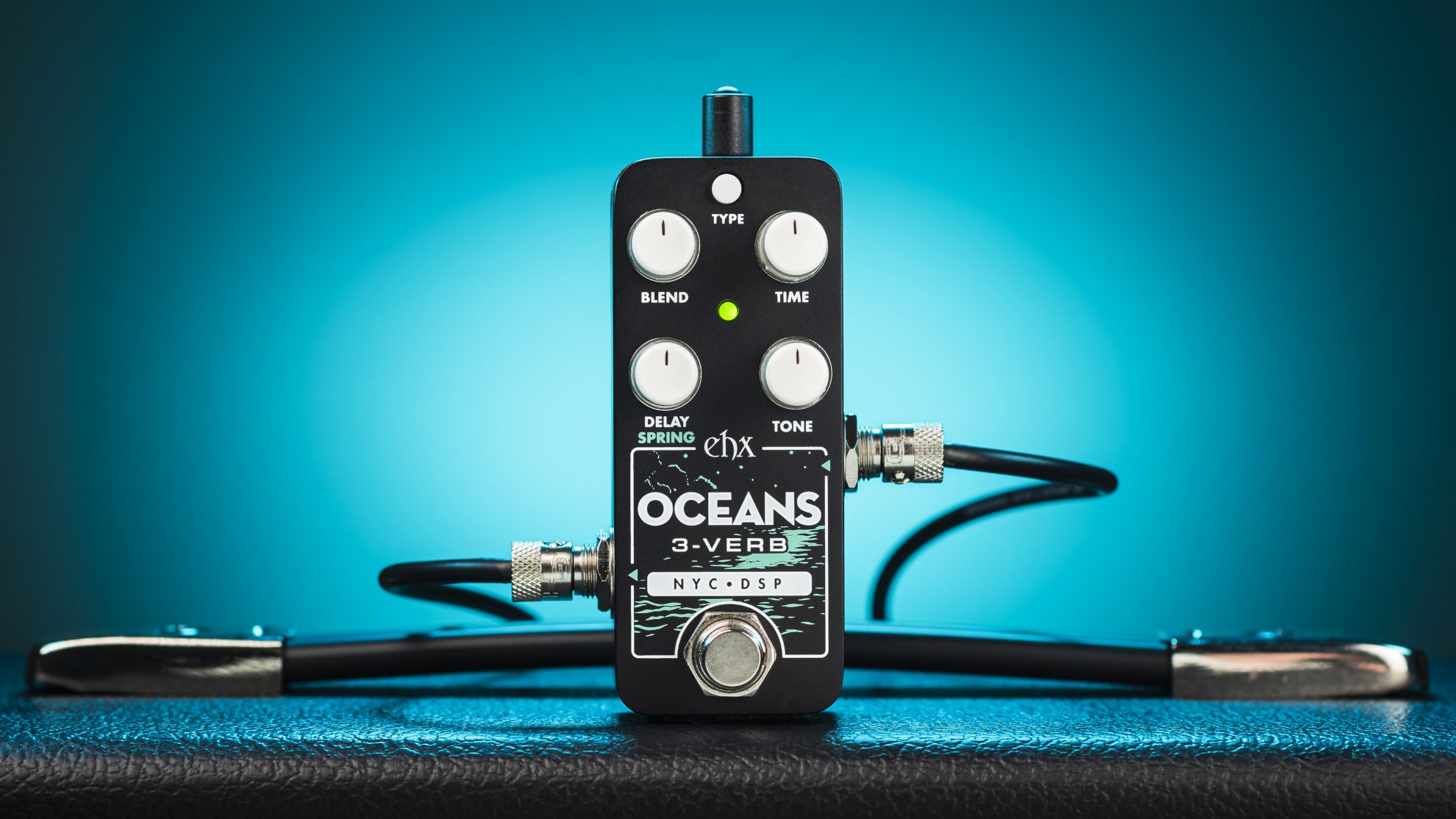

POWER JACK

Attach the output plug from the included power supply to the 9V power jack. Current draw: 100mA at 9.0VDC

TYPE BUTTON

Cycles through the three available reverbs. The color of the LED indicates the currently selected reverb: Green – SPRING, Orange – PLATE, Red – HALL

BLEND KNOB

Adjusts the output mix from 100% dry to 100% wet.

TIME KNOB

Controls the decay time of the reverb. In Plate and Hall, the TIME knob goes all the way to infinite at its maximum setting.

SPEED/LAYER KNOB

When Plate and Hall are selected, this knob sets the pre-delay time, up to 1 second. In Spring mode, this knob chooses between three spring lengths: short (left), medium (center), and long (right).

TONE KNOB

Controls the brightness of the reverb.

INPUT JACK

Audio input to the Oceans 3-Verb.

OUTPUT JACK

Audio output from the Oceans 3-Verb.

FOOTSWITCH & STATUS LED

Footswitch engages or bypasses the effect. The LED color indicates the selected reverb type. In bypass, the LED is off.

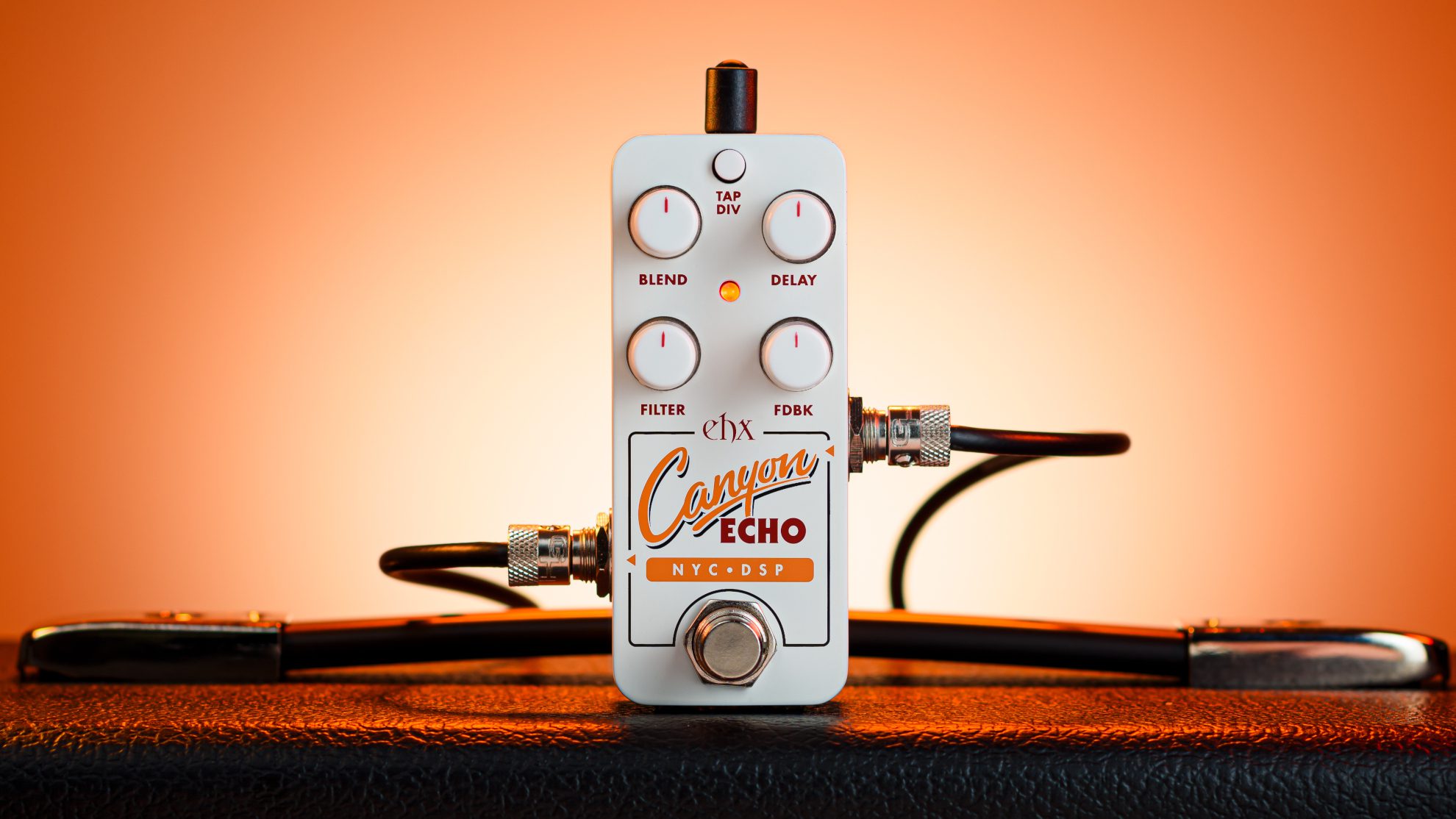

POWER JACK

Attach the output plug from the included power supply to the 9V power jack. Current draw: 100mA at 9.0VDC

TAP DIV BUTTON

When the delay time is set by tap-tempo, the TAP DIV button sets the tap-division: Green – 1/8 Note equal to half your tap time. Orange – Dotted 1/8 Note equal to 3/4 your tap time. Red – 1/4 Note equal to your tap time.

BLEND KNOB

Adjusts the output mix from 100% dry to 100% wet.

DELAY KNOB

Controls the delay time, ranging from 8ms to 3s.

FILTER KNOB

Applies an adjustable low-pass or highpass filter to the delay line. Set FILTER to the center or noon position to disable the filters. Turn FILTER counterclockwise to place a low-pass filter on the delay effect, giving the Canyon Echo a sound similar to an analog delay. Turn FILTER clockwise to place a high-pass filter on the delay repeats, for an effect reminiscent of a tape delay. The further you turn FILTER in either direction, the more filtering is applied to the effect.

FDBK KNOB

Controls how many repeats the Canyon Echo generates. At minimum you get one repeat. At maximum, the repeats are nearly endless. NOTE: the filter is placed in the feedback path of the delay and filters out more signal with each repeat, limiting the maximum repeats at more extreme FILTER settings.

INPUT JACK

Audio input to the Canyon Echo.

OUTPUT JACK

Audio output from the Canyon Echo.

FOOTSWITCH & STATUS LED

Footswitch engages or bypasses the effect. The LED color indicates the selected effect type. In bypass, the LED is off.

POWER JACK

Attach the output plug from the included power supply to the 9V power jack. Current draw: 100mA at 9.0VDC

FLUTTER BUTTON

Flutter emulates the pitch modulation that occurs on old, worn-down tape machines. Press this button to set flutter depth: Green – low flutter, Orange – medium flutter, Red – high flutter.

BLEND KNOB

Adjusts the output mix from 100% dry to 100% wet.

DELAY KNOB

Controls the delay time, ranging from 8ms to 3s.

SAT KNOB

Controls the saturation, or distortion, on the echo repeats.

FDBK KNOB

Controls the number of echo repeats the Rerun generates. At minimum you get one repeat, at maximum you get runaway self-oscillation.

INPUT JACK

Audio input to the Rerun.

OUTPUT JACK

Audio output from the Rerun.

FOOTSWITCH & STATUS LED

Footswitch engages or bypasses the effect. The LED color indicates the selected Flutter depth. In bypass, the LED is off. The LED blinks at the latest tap reading when the delay time is set by tap tempo.

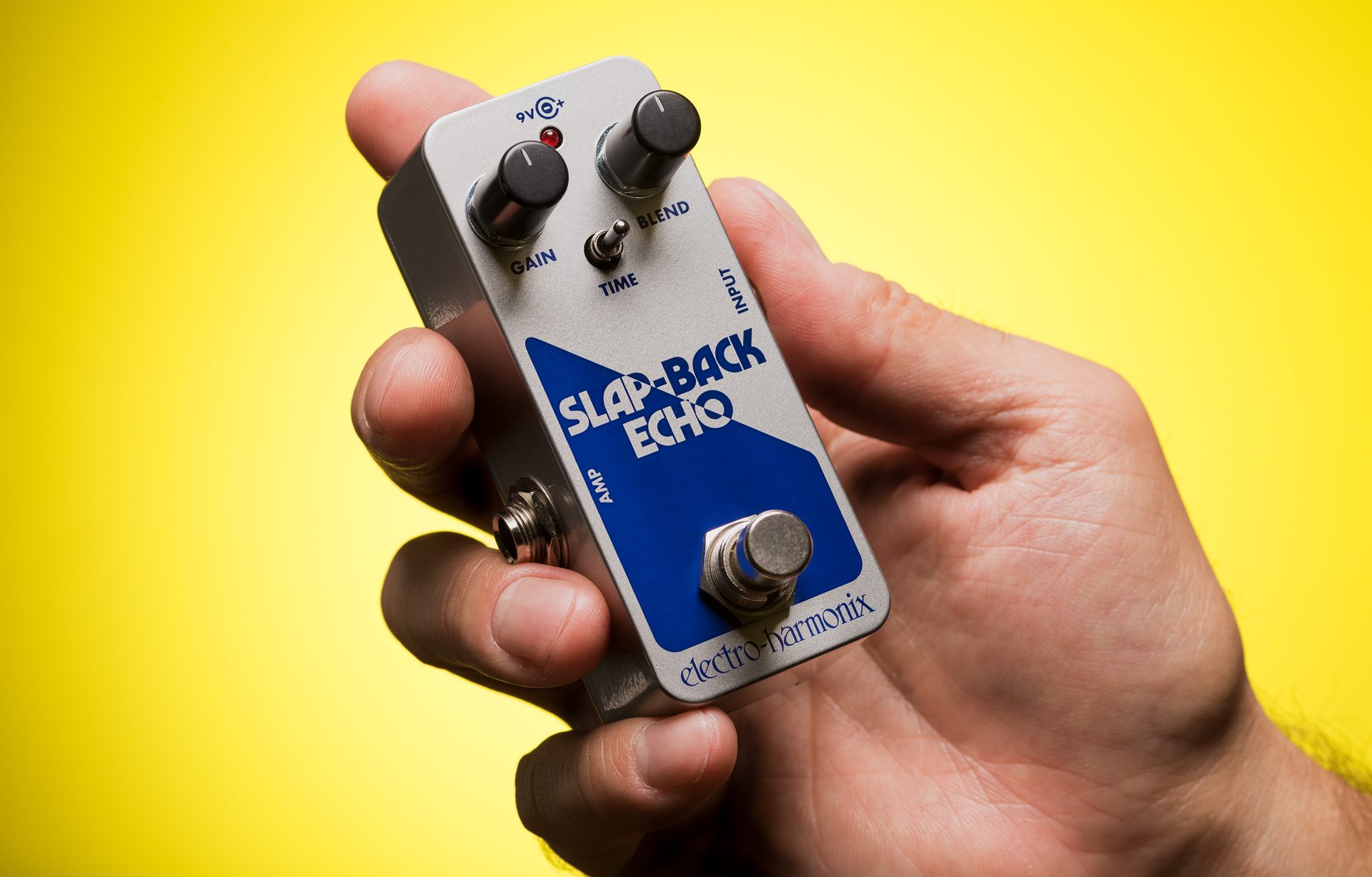

9V POWER JACK

Your Slap-Back Echo comes equipped with an Electro-Harmonix 9.6VDC-200mA power supply. The Slap-Back Echo requires 15mA at 9VDC with a center negative plug.

GAIN KNOB

The GAIN knob boosts your dry signal before it hits the BLEND knob and echo circuitry. As you turn GAIN clockwise, your signal gets louder. The GAIN knob increases your signal level by up to 20dB, which is handy for added volume during solos and important riffs.

BLEND KNOB

The BLEND knob controls the wet/dry mix at the output jack. With the knob fully counterclockwise, the signal is 100% dry. Set the knob fully clockwise and your output is all echo. Please note: the dry and wet signal are both boosted by the GAIN knob. The output signal is boosted even with BLEND set to 100% dry.

TIME SWITCH

The TIME switch allows you to select between three different delay times: UP: 100ms MIDDLE: 65ms DOWN: 45mS

INPUT JACK

Audio input to the Slap-Back Echo.

AMP JACK

Audio output from the Slap-Back Echo. In bypass mode, the AMP jack is directly connected to the INPUT jack and nothing else.

FOOTSWITCH & STATUS LED

The footswitch engages or bypasses the effect. The Status LED lights when the effect is engaged. The LED is off in bypass mode. The Slap-Back Echo employs True Bypass.

BLEND KNOB

Varies the output mix between the dry and delayed signals. The BLEND knob ranges from 100% dry (CCW position) to 100% wet (CW position). Set BLEND to the center position for equal levels of both.

FEEDBACK KNOB

Controls the amount of signal that is circulated from the output of the delay block back to its input yielding delay repeats, or multiple echoes. If set very high, runaway oscillation will occur. Fairly high feedback with short delay settings produces a reverb effect.

DELAY KNOB

Sets delay time from 30ms to 550ms. As DELAY is turned clockwise, the delay time increases. Turning the DELAY knob while playing can produce strange, eerie and unusual pitch-shift effects, especially with FEEDBACK set above noon. Note: it is normal to hear ring modulation artifacts when DELAY is set above 3 o’clock.

LEVEL KNOB

Sets the input gain for the Nano DMM. Both the wet and dry signals mixed by the BLEND knob go through the gain block. We recommend starting with LEVEL turned to 12 o’clock, setting the BLEND knob for the proper mix between wet and dry signals, then adjust the LEVEL knob for an ideal volume balance between effect and bypass modes.

RATE KNOB

Adjusts the speed of modulation. As RATE is turned clockwise, the modulation speed increases. The original DMM has a rate switch labeled Chorus and Vibrato. To achieve the same Chorus and Vibrato settings on the Nano DMM: set RATE to 9 o’clock for the Chorus setting; set RATE to 2 o’clock for the Vibrato setting. The DEPTH knob must be set above the full CCW position to hear the RATE knob change the modulation speed.

DEPTH KNOB

Sets the amount of modulation that is added to the effect. As DEPTH is turned clockwise, modulation width increases. Modulation is produced by sweeping the delay time with a repeating LFO. The Nano DMM’s built-in modulation produces vibrato style effects when the BLEND knob is set to maximum or produces chorus type effects when BLEND is set to the middle. Turn DEPTH down to the full counter-clockwise position to disable modulation.

INPUT JACK

Audio input to the Nano DMM.

OUTPUT JACK

Audio output from the Nano DMM.

FOOTSWITCH & TAILS SWITCH

The footswitch engages or bypasses the effect. An internal TAILS switch makes delay echoes ring out to their natural feedback decay after entering bypass mode. When TAILS is on, the pedal uses buffered bypass. When TAILS is off, the delay echoes are muted upon entering bypass and the pedal is True-Bypass.

OVERLOAD LED

The OVERLOAD LED lights when the delayed signal starts to smoothly clip.

STATUS LED

The STATUS LED lights when the effect is engaged. In bypass mode, the STATUS LED is off.

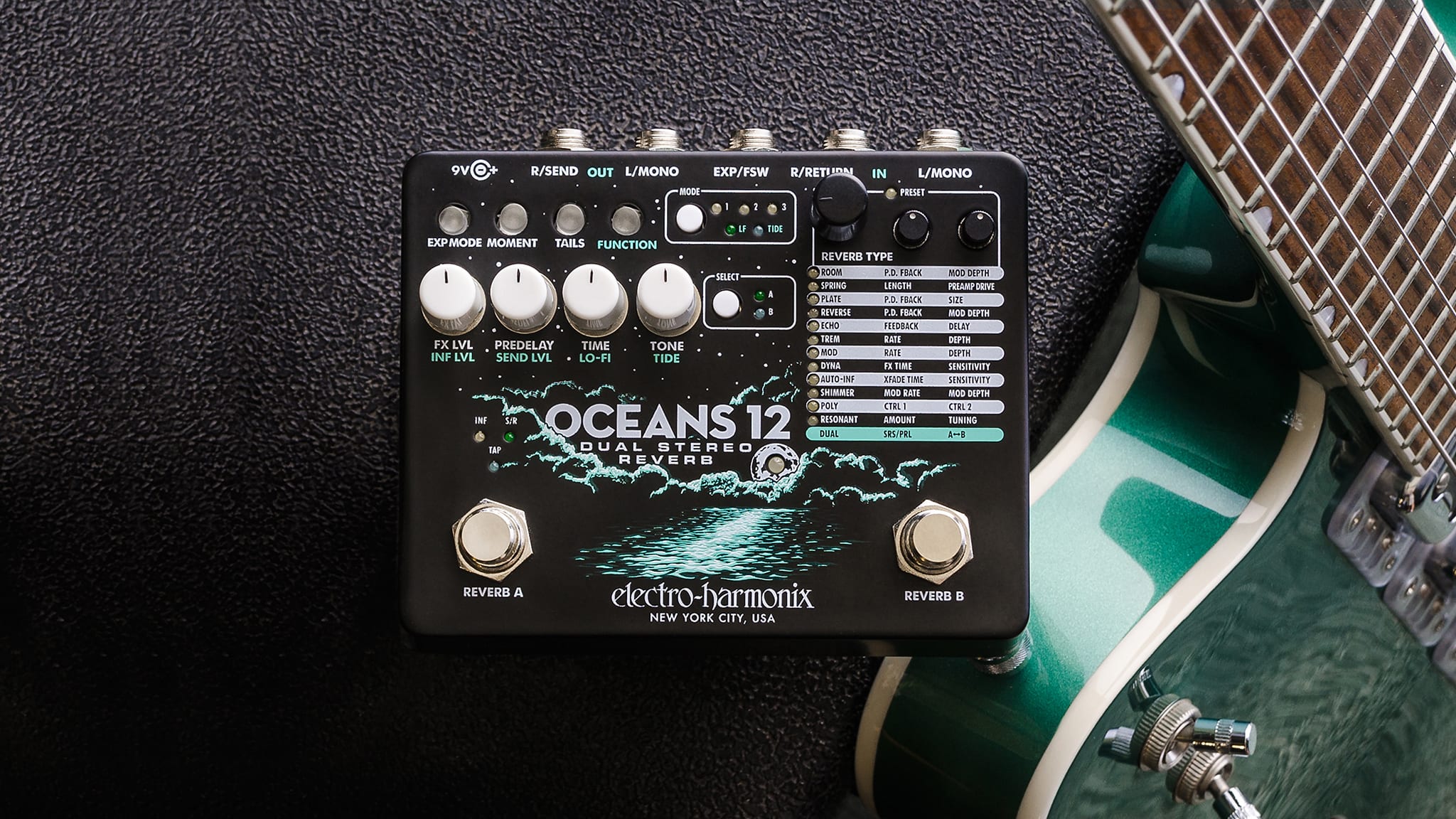

9V Power Jack

Attach the output plug from the included power supply to the 9V power jack.

FX LVL KNOB

Wet/dry control that sets the balance between your dry signal and the reverb effects.

PREDELAY KNOB

For all Reverb Types except ECHO, SHIMMER, and RESONANT, the PREDELAY knob sets the pre-delay time for the reverb block.

TIME KNOB

In all Reverb Types except REVERSE and DYNA, the TIME knob controls the decay time of the Oceans 12 reverb.

TONE KNOB

In all Reverb Types, TONE controls the tone or EQ of the reverb signal. As this knob is turned clockwise, the sound of the reverb gets brighter. As you turn TONE counter-clockwise, the sound of the reverb gets darker.

EXP MODE BUTTON

When this button is lit, EXP MODE is enabled. When an external expression pedal or control voltage is connected, you can control any combination of knob parameters with your foot.

MOMENT BUTTON

Enabling MOMENT changes the functions of the REVERB A and REVERB B footswitches to only allow the reverb effects while the footswitch is pressed down.

TAILS BUTTON

When TAILS is enabled, the reverb continues to play after its engine switches to bypass, with the decay time set by the TIME knob.

FUNCTION BUTTON

Selects which set of parameters – primary or alternate – is controlled by the main knobs and the mini knobs.

MODE BUTTON

Each Reverb Type on the Oceans 12 has either two or three unique modes of operation. Pressing the MODE button cycles through these available modes.

SELECT BUTTON

Toggle between reverb engines.

R/SEND

FX loop output.

L/MONO OUT JACK

Output for a mono setup. In a stereo setup this is your left output.

COMBO EXP/FSW JACK

Input jack accepts either an expression pedal or an external footswitch.

R/RETURN INPUT JACK

The right input jack in a stereo setup. This input can also be the RETURN signal if using SEND/RETURN mode.

L/MONO INPUT JACK

Either the mono audio input or the left stereo input.

REVERB TYPE KNOB

Selects which Reverb Type is active.

PARAMETER KNOBS

Functions change depending on the selected Reverb Type, mode, and status of the illuminated FUNCTION button.

REVERB A Footswitch

Controls Reverb A with Bypass, Tap and Infinite controls.

REVERB B Footswitch

Controls Reverb B with Bypass, Tap and Infinite controls.

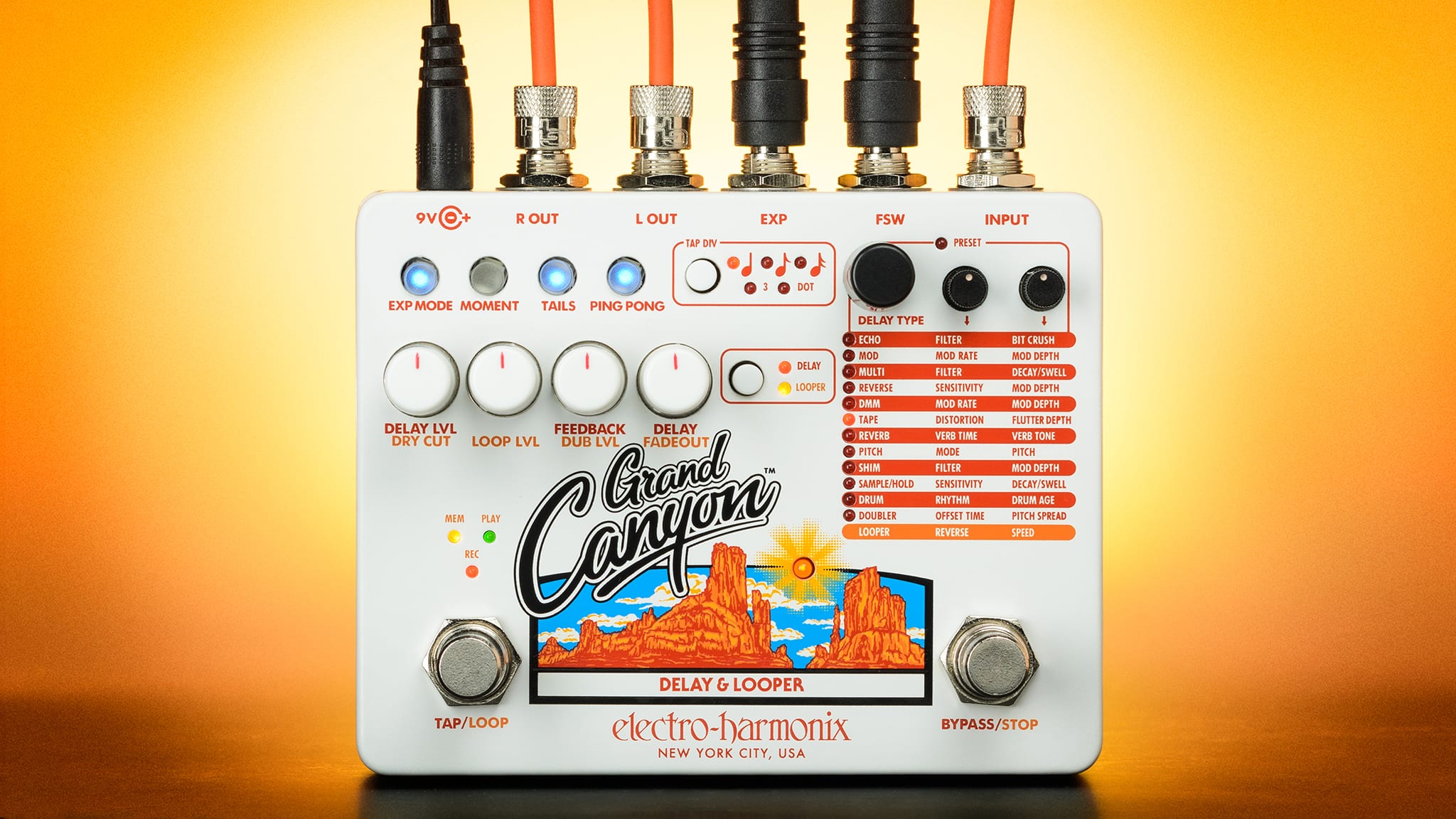

DELAY LVL

Wet/dry control that sets the balance between your dry signal and the delay effects produced by the Grand Canyon.

LOOP LVL

Controls the output volume of the looper’s playback.

FEEDBACK

Controls the number of repeats of the delayed signal.

DELAY

Controls the delay time for all Delay Types.

DELAY / LOOPER MODE BUTTON

Pressing the Mode button cycles you through the three modes, allowing you to seamlessly integrate delay effects into your looping. You can also use an external footswitch to move between modes.

EXP MODE BUTTON

When this button is lit, EXP MODE is enabled. When an external expression pedal or control voltage is connected to the EXP jack on the rear of the Grand Canyon, you can control any combination of knob parameters with your foot. When the EXP MODE button is disabled (button is not lit), the external expression pedal acts as a volume pedal for the dry signal and the signal into the delay effect. This button is also used to set up Expression Settings.

MOMENT BUTTON

While in Delay or Delay+Looper modes, enabling MOMENT changes the function of the BYPASS/STOP footswitch to only allow the delay effects while the footswitch is pressed down. The delay effects are bypassed when the footswitch is released. When MOMENT is disabled, the BYPASS/STOP footswitch works like a normal latching footswitch, toggling between bypass and effect modes with each press and release of the footswitch.”

TAILS BUTTON

When TAILS is enabled, the echoes continue to repeat after the pedal switches to bypass or to Looper mode, with the number of repeats set by the FEEDBACK knob.

PING PONG BUTTON

The PING PONG function bounces each delay repeat back and forth between the left and right outputs.

TAP DIVIDE BUTTONS AND LEDS

The TAP DIV function sub-divides the tempo tapped in via the TAP/LOOP footswitch to create shorter or longer delay times in sync with your tap time.

DELAY TYPE KNOB

Selects which Delay Type is active.

MINIATURE PARAMETER KNOBS

Functions change depending on the selected Delay Type. On the face of the Grand Canyon, below the Mini Knobs, there is a table listing the available Mini Knob functions for each Delay Type.

TAP/LOOP BUTTON

While in Delay mode, press and release the TAP/LOOP footswitch two or more times to set the delay time with your foot.

BYPASS/STOP

The BYPASS footswitch works like a standard latching footswitch when the MOMENT button is not lit: press and release to toggle between bypass and effect modes.

R OUT JACK

This is the right output jack in a stereo setup.

L OUT JACK

Use this output for a mono setup. In a stereo setup this is your left output.

EXP JACK

Connect an expression pedal with a TRS plug to this jack to allow external control over any of the Grand Canyon’s knobs, or use it like a volume pedal on the dry signal before it hits the delay effects.

FSW JACK

Connect an external momentary footswitch to this ¼” jack.

INPUT JACK

This ¼” jack is the audio input.

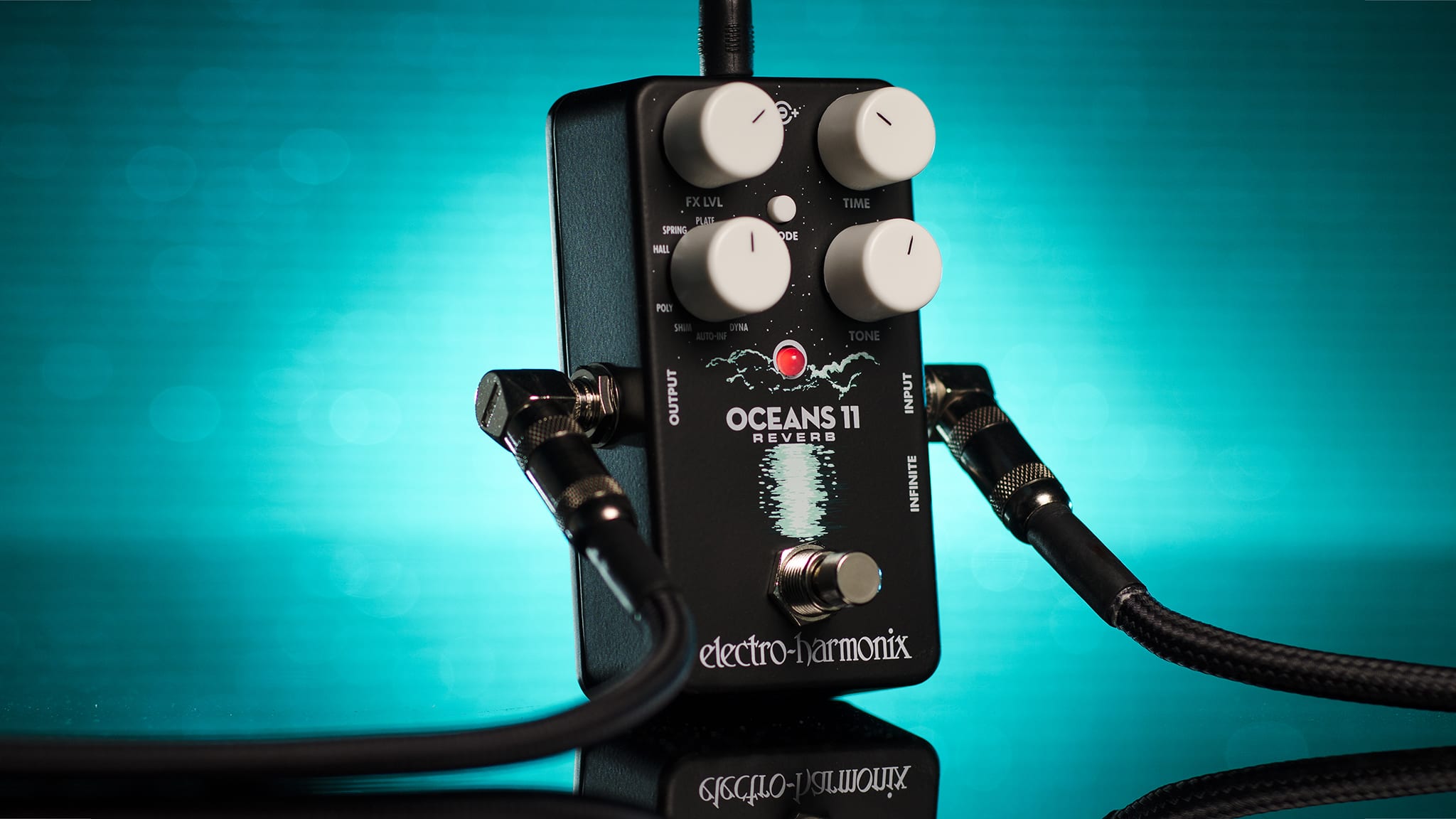

FX LVL Knob

Controls the output volume of the reverb effect.

TIME Knob

Controls the decay time of the reverb.

Reverb Type Knob

Selects which reverb types is active.

TONE Knob

Controls the tone or EQ of the reverb signal.

MODE Button

Cycles through the available modes of the active reverb type. Each reverb type has a certain number of modes which modify the behavior of the active reverb type.

INPUT JACK

This is the audio input.

INFINITE Jack

Connect an external momentary footswitch to this ¼” jack. Press and hold the external switch to activate infinite reverb. The infinite reverb wash will continue as long as the external switch is pressed.

OUTPUT JACK

This is the audio output.

Footswitch

Toggle between buffered bypass and effect modes. When the pedal is in effect mode, the LED will be lit. In most reverbs, the footswitch can also engage Infinite by pressing and holding it down. Moreover, the footswitch can be used for tap tempo in ECHO reverb.

LED

The LED lights when the OCEANS 11 effect is active and shuts off when in bypass mode. Its color and blinking pattern also indicate information about the reverb mode, tap tempo delay, and infinite status.

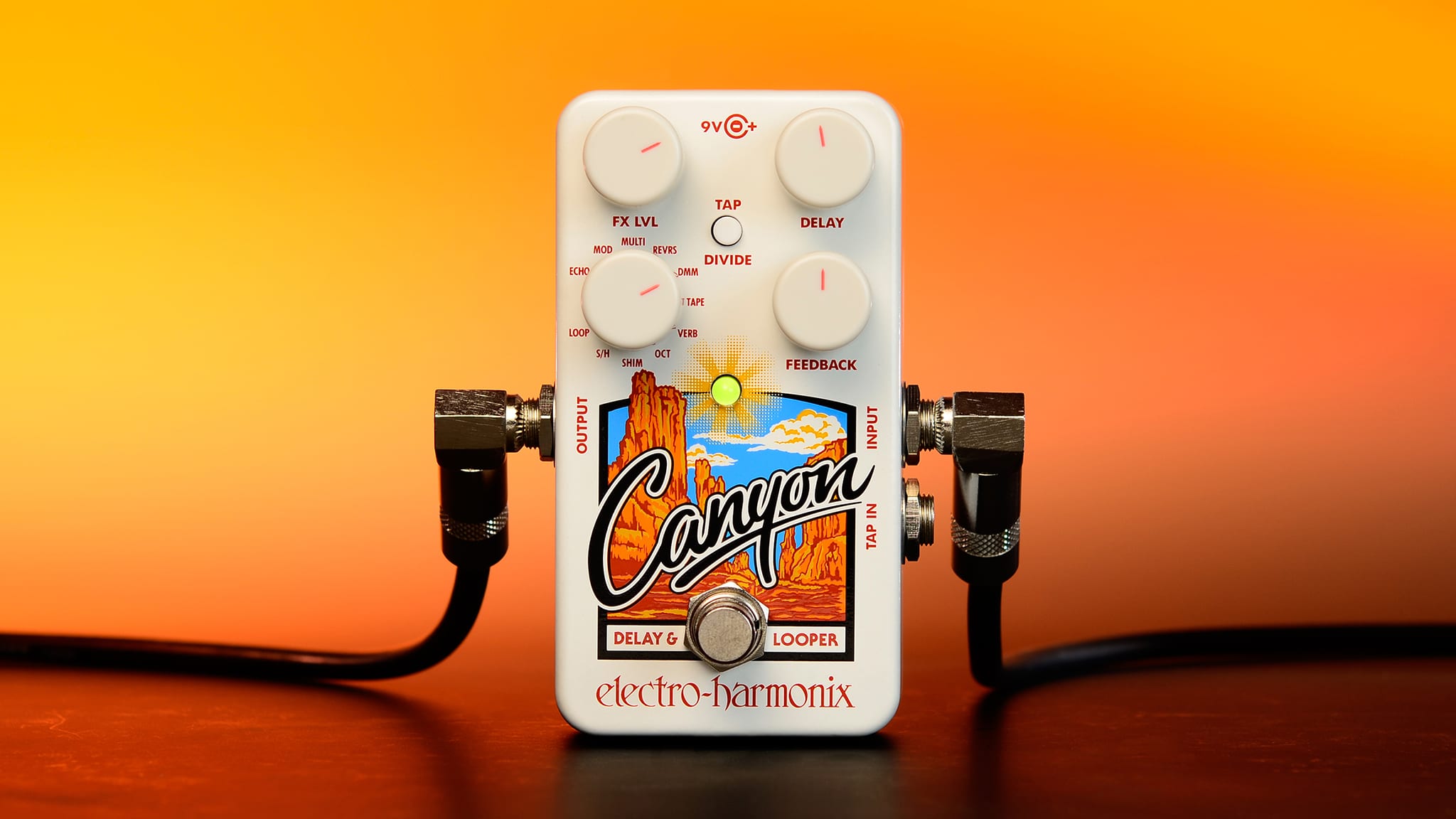

FX LVL KNOB

Controls the output volume of the delay effect.

DELAY KNOB

Controls the delay time, from a minimum position of 5 milliseconds to a maximum of 3 seconds.

MODE KNOB

An 11-position rotary switch that selects which delay mode is active.

FEEDBACK KNOB

Controls the number of repeats of the delayed signal.

TAP/DIVIDE SWITCH

Controls the Tap Divide setting. When the delay time is set using tap tempo, this button controls the division of the tapped tempo.

INPUT JACK

This is the audio input.

TAP IN JACK

Connect an external momentary footswitch to control the delay time by tapping in a tempo.

OUTPUT JACK

This ¼” jack is the audio output of the CANYON.

FOOTSWITCH

Press this footswitch to switch the pedal between bypass and effect modes. The footswitch can also be used to set the delay time by tapping it at least two times.

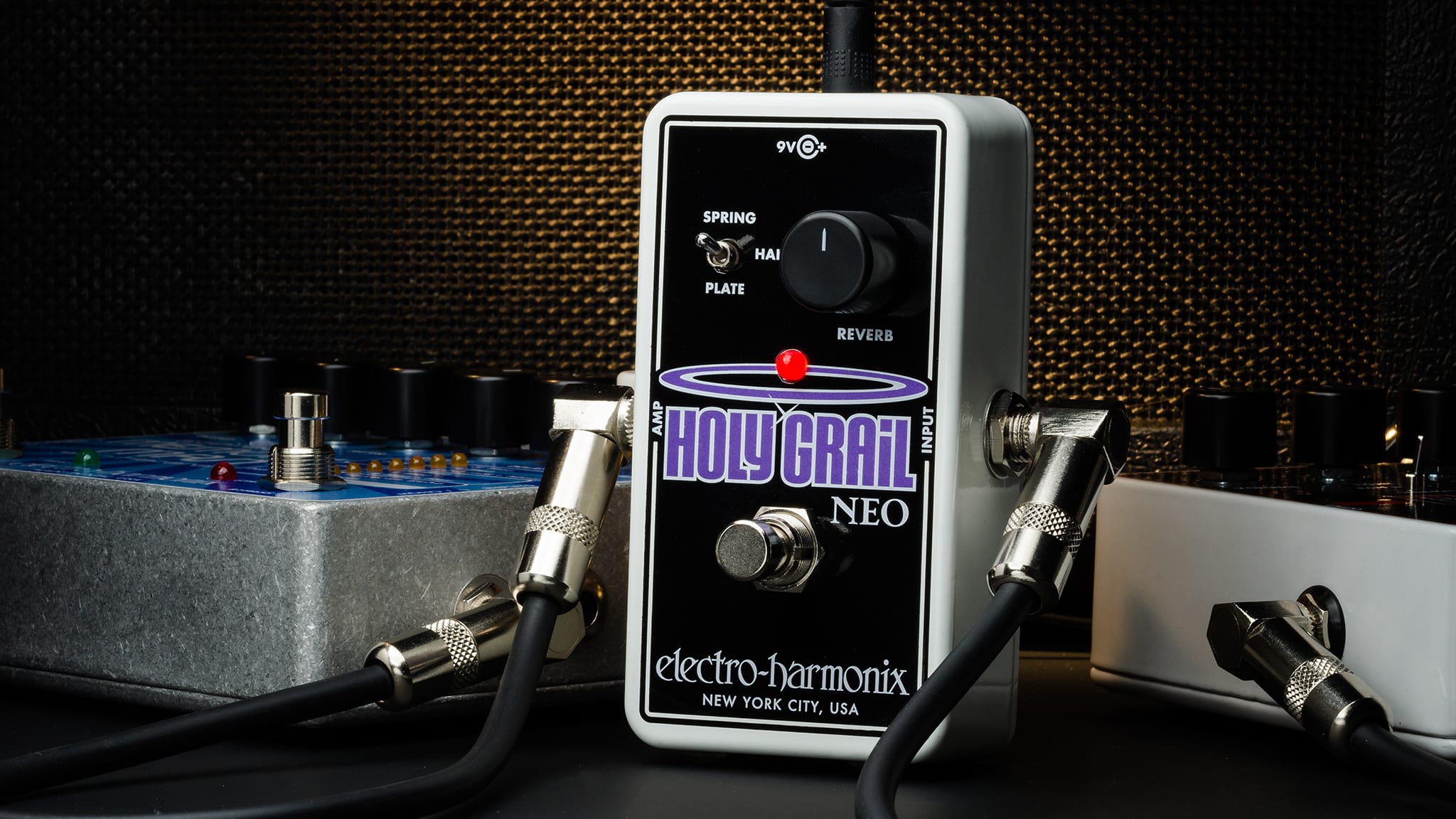

REVERB KNOB

Controls the wet/dry mix from 100% dry to 100% wet.

TOGGLE SWITCH

Switches between the three different reverb algorithms.

FOOTSWITCH

Toggle between effect and bypass modes.

INPUT JACK

This ¼” jack is the audio input.

AMP JACK

This ¼” jack is the audio output.
