INPUT I Jack

This 1⁄4” jack is the audio input for the normal channel.

INPUT II Jack

This 1⁄4” jack is the audio input for the bright channel.

VOL I Knob

Controls the overall loudness of channel I, the normal channel.

VOL II Knob

Controls the overall loudness of channel II, the bright channel.

TONE Knobs

TREBLE, MIDDLE, BASS and PRESENCE controls are used to alter the amplifier’s frequency response. Adjust to taste and experiment with different settings.

STANDBY switch

Flip the STANDBY switch to the “on” position. It’s best to keep the volume low when turning your amp on and then adjust it to the level you need.

POWER switch.

Turn on the POWER switch. Wait thirty seconds for the tubes to warm up.

Lamp

Lights up when the POWER switch is on.

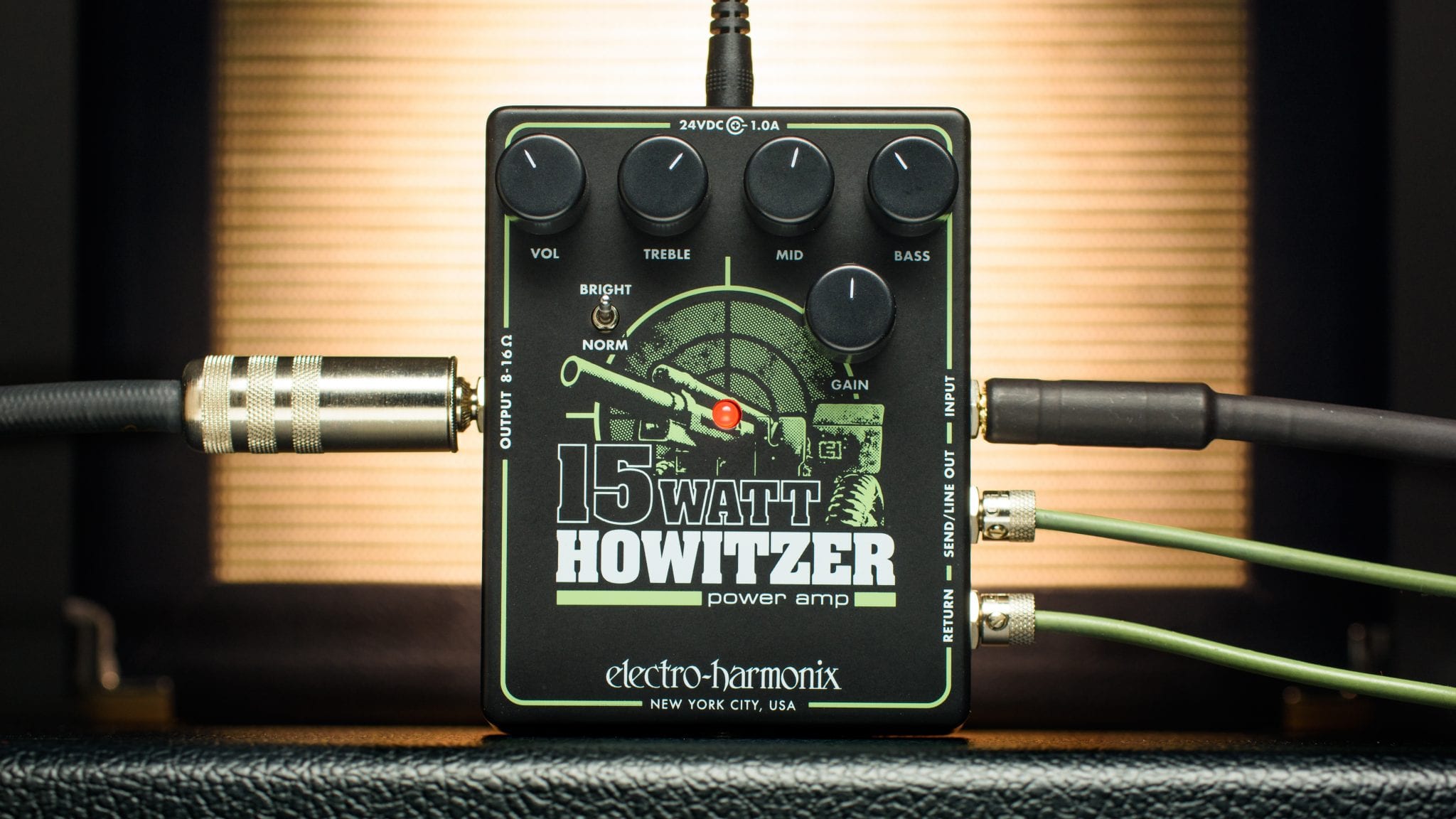

VOL KNOB

Controls the volume or loudness of the amplifier. As you turn the VOL knob clockwise, the 15Watt Howitzer’s output gets louder. This knob acts as a master volume control and interacts with the GAIN knob to set the output level.

TREBLE KNOB

This knob controls the loudness of high frequencies in the preamp section of the amplifier. As you turn TREBLE up, the high-end increases.

MID KNOB

Controls the mid frequency loudness in the preamp section of the amplifier. As you turn MID up, the middle frequency band increases in level.

BASS KNOB

Controls the loudness of low frequencies in the preamp section of the amplifier. As you turn BASS up, the low-end increases.

GAIN KNOB

This knob controls the amount of gain and overdrive that is generated by the preamp. As you turn GAIN clockwise, the overall signal will get louder and start to distort. When the knob is turned fully clockwise, the sound will be a warm overdriven tone. WARNING: as you turn the GAIN knob up, the output level might increase significantly, compensate by turning down VOL.

INPUT JACK

Plug the output of your guitar, effects pedal or any other instrument into the INPUT jack using a standard ¼” instrument cable. The input impedance presented at the INPUT jack is 1 M.

OUTPUT JACK

Connect the 15Watt Howitzer’s OUTPUT jack directly to a speaker cabinet with impedance of 8 – 16 only.

SEND/LINE OUT JACK

The SEND/LINE OUT jack outputs the Howitzer’s preamp section. Connect SEND/LINE OUT to the beginning of your FX loop or use it as a direct output.

RETURN JACK

The RETURN jack connects directly to the power amp section of the Howitzer. Plug your FX loop output into the RETURN jack. The RETURN jack can also be used as a direct input into the power amp. Plug directly into the RETURN jack to bypass the Howitzer’s preamp section. When using the RETURN jack as a direct power amp input, the preamp section will not effect the tone. The VOL knob still controls the overall loudness of the amp and the BRIGHT/NORM switch provides a slight high-end boost to the Return signal. The input impedance presented at the RETURN jack is 1 MΩ.

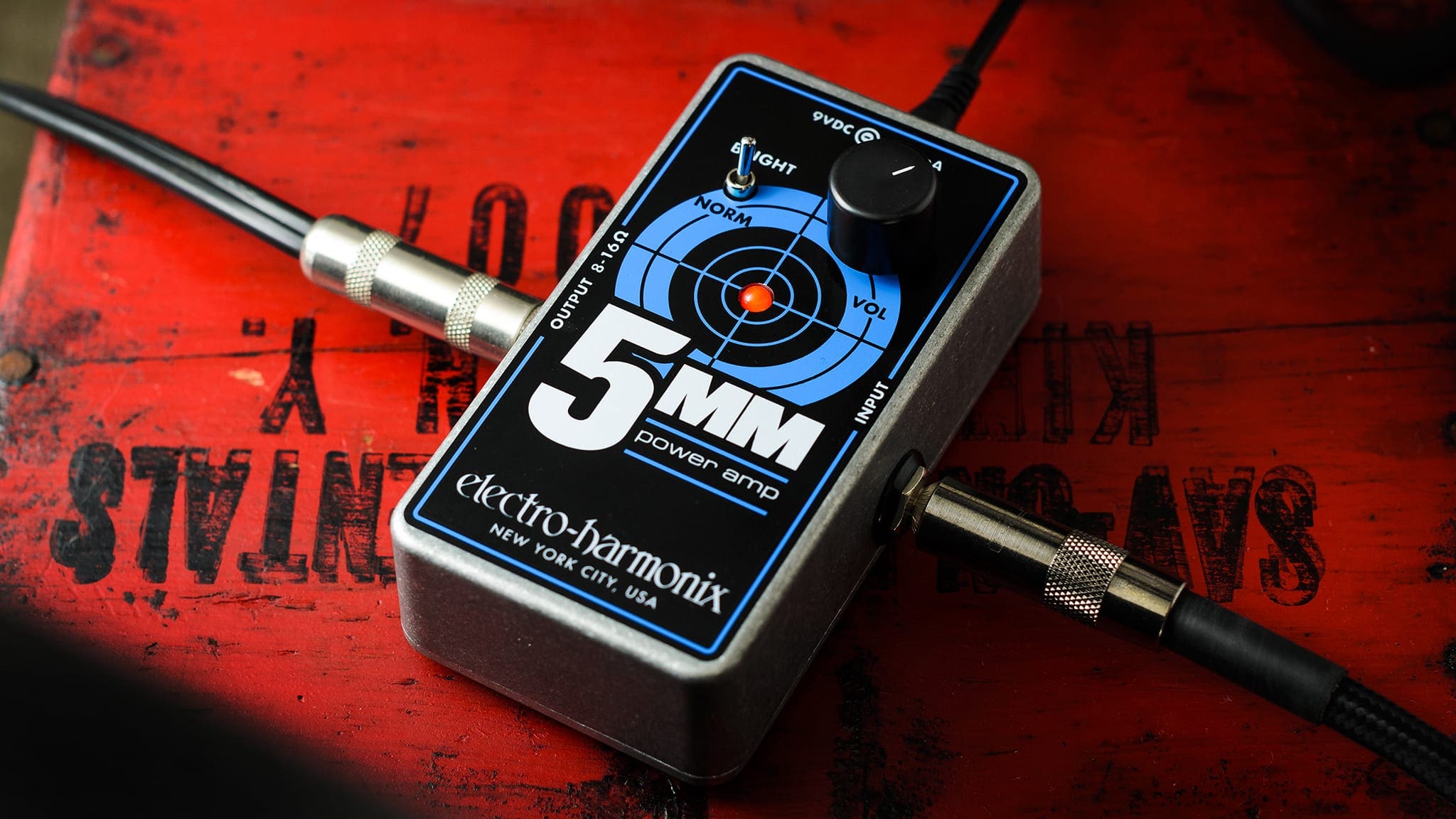

BRIGHT/NORM CONTROL

When engaged, the BRIGHT switch adds a subtle top boost or presence to your signal. When in the NORM position, the top boost is defeated.

VOLUME CONTROL

This knob controls the volume or loudness of the amplifier.

INPUT JACK

Plug the output of your guitar, effects pedals or any other instrument into the INPUT jack using a standard ¼” instrument cable. The input impedance presented at the INPUT jack is 2 MΩ.

OUTPUT JACK

Connect the 5MM’s OUTPUT jack directly to a speaker cabinet. 8 Ω – 16 Ω only.

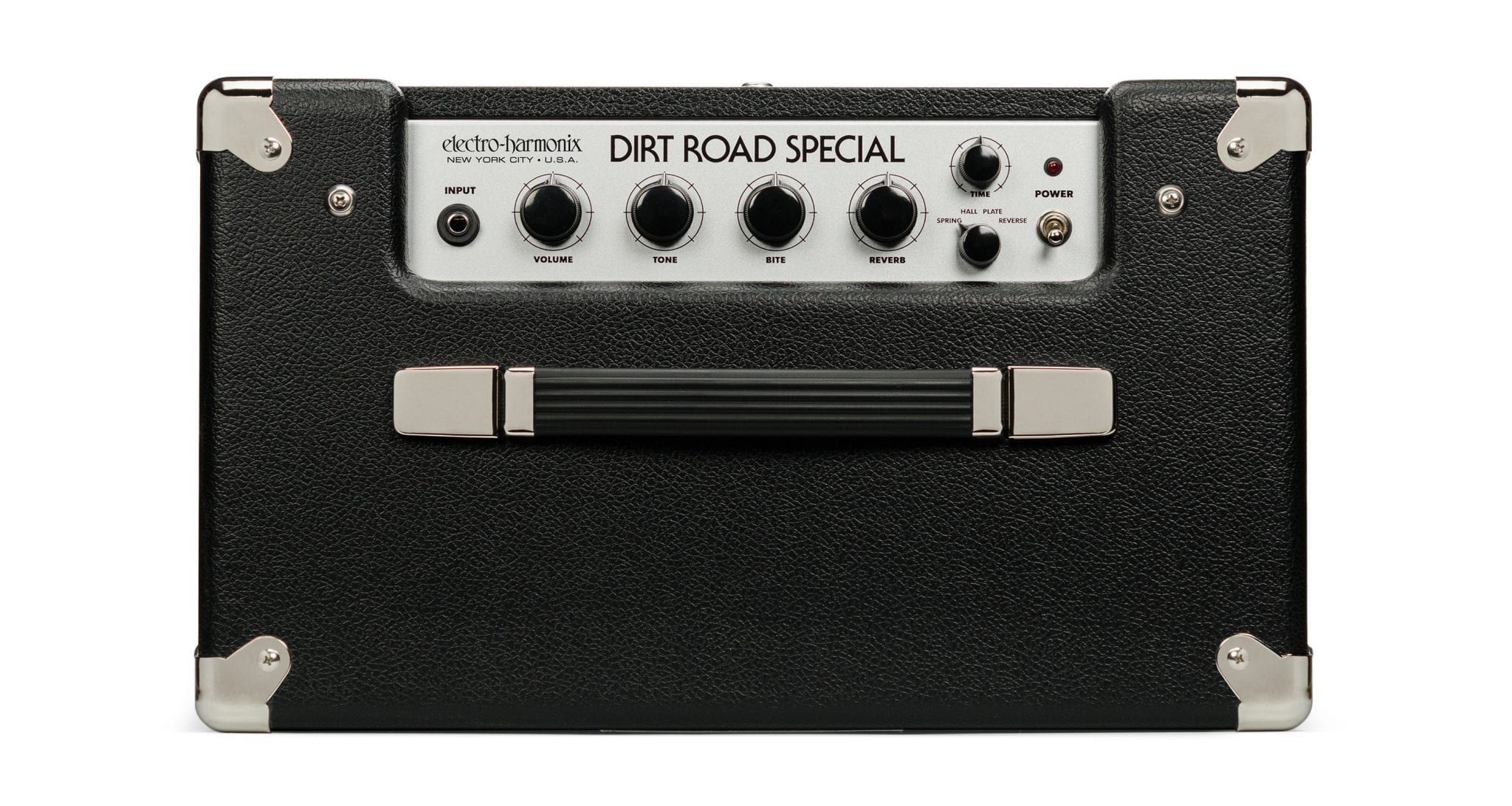

INPUT Jack

This 1⁄4” jack is the audio input for the amplifier. The input impedance is 1.5MΩ.

VOLUME Knob

Controls the overall loudness and gain of the amplifier. We recommend turning down VOLUME prior to applying power. Turn up the VOLUME knob after the amp has been powered up for at least five seconds.

TONE Knob

Alters the amplifier’s frequency response. Turning this control counter-clockwise increases bass and turning it clockwise increases treble.

BITE Knob

Alters the amplifier’s gain level and frequency response. Turning this control clockwise increases the gain and treble content. This control is also very interactive with the VOLUME control; changing one affects the other.

REVERB Knob

Controls the volume of the reverb. When the reverb footswitch is not connected to the back panel via a 1⁄4” mono instrument cable, the reverb is always on.

Reverb Switch Knob

Chooses the reverb mode. From left to right, the modes are SPRING, HALL, PLATE, and REVERSE.

TIME Knob

Adjusts the decay time, or reverb length/size, for the SPRING, HALL and PLATE reverbs. In REVERSE mode, the TIME knob sets the length of time between striking a note and the reverb fade-in. While in PLATE mode, when TIME is set to its maximum position, the reverb decay is over 30 seconds, creating a lush reverb wash with each new note.

Power Switch

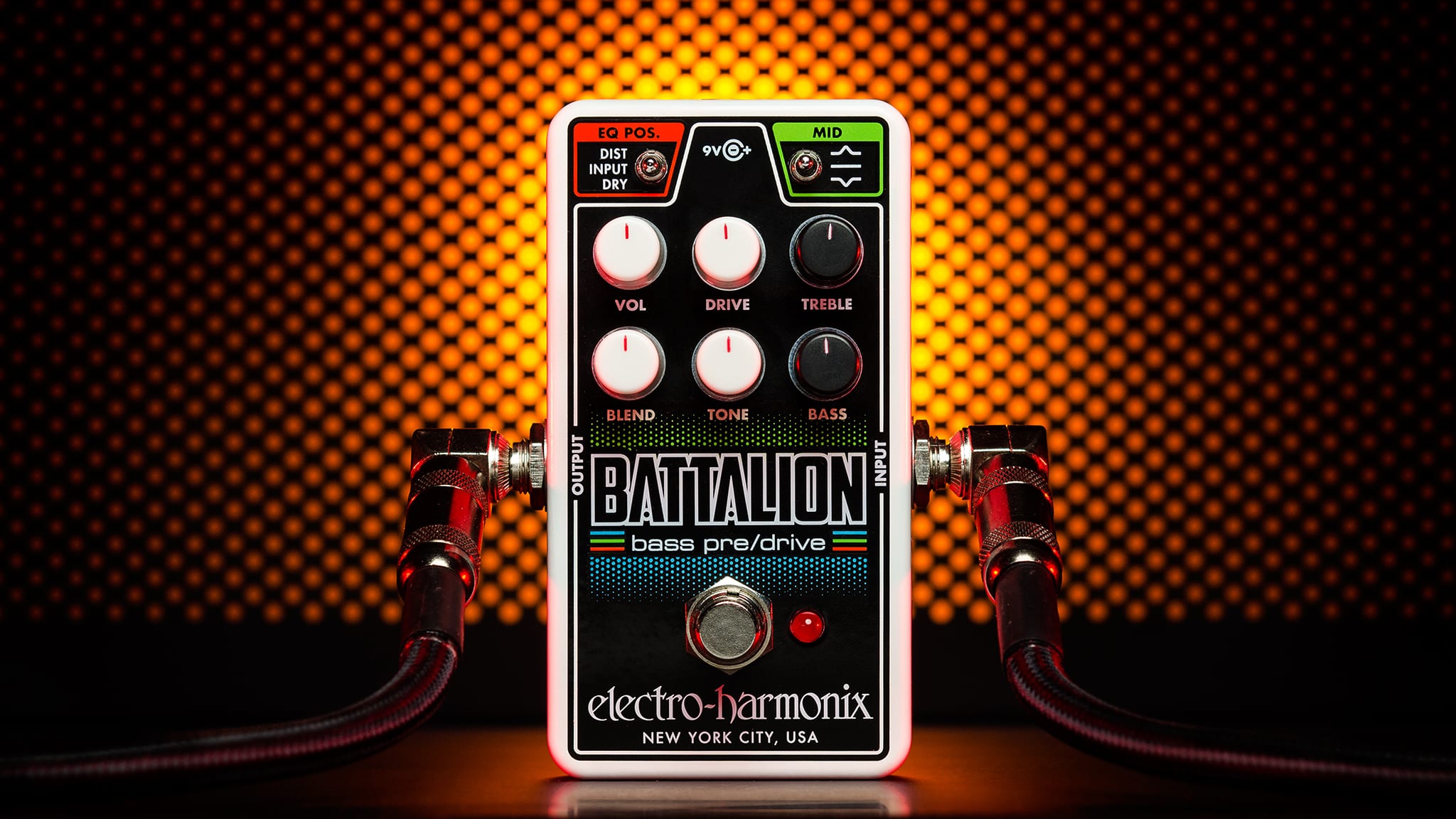

VOL KNOB

Sets master output level of the pedal.

DRIVE KNOB

Sets the intensity and saturation of the distortion.

TREBLE KNOB

Boost or cut high end.

BLEND KNOB

Sets the ratio between clean signal and distorted signal.

TONE KNOB

Cuts high frequencies from the distortion as the knob is turned down.

BASS KNOB

Boost or cut low end.

EQ POSITION SWITCH

determines where the EQ falls in the Nano Battalion’s signal path.

MID SWITCH

In the upwards position, 9dB boost around 500Hz. In the downwards position, 9dB cut around 500Hz.

BYPASS FOOTSWITCH & LED

The LED illuminates when the effect is engaged. Press the footswitch to toggle between effect on and bypass mode.

INPUT JACK

Plug your bass, or the output of another effects unit, into this jack with a standard ¼” TS cable.

OUTPUT JACK

Use this to plug the output into a bass amp or another effects unit.

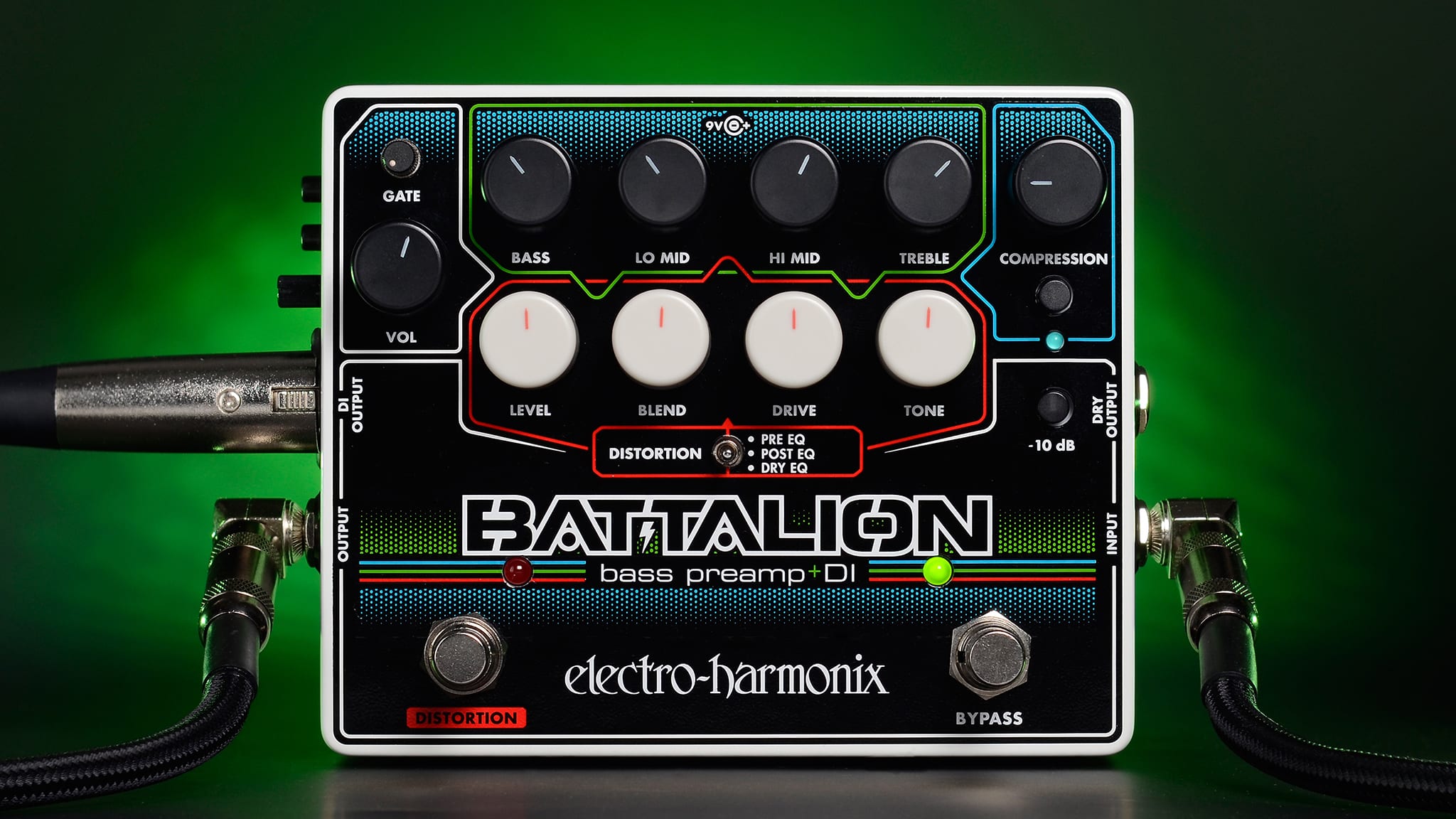

BYPASS FOOTSWITCH AND GREEN LED

The right LED illuminates when the effect is engaged. Press the footswitch to toggle between effect mode and bypass.

VOL KNOB

Sets master output level of the pedal.

GATE KNOB

Sets the threshold for the noise gate.

-10dB PAD BUTTON

Press to cut the input signal by 10dB, good for active basses or other basses with very strong output signals.

BASS KNOB

Boost or cut low end.

LO MID KNOB

Boost or cut low midrange frequencies.

HI MID KNOB

Boost or cut high midrange frequencies.

TREBLE KNOB

Boost or cut high end.

COMPRESSOR BUTTON AND BLUE LED

Use this switch to engage or bypass the compressor circuit.

COMPRESSOR KNOB

Determines the intensity of the compression.

DRIVE FOOTSWITCH AND RED LED

Use this footswitch to engage or bypass the distortion circuit. The Left LED will illuminate when the distortion is active.

LEVEL KNOB

Sets the output level of the distortion section.

BLEND KNOB

Controls mix between dry and distorted signal. Add more distortion by turning the knob up.

DRIVE KNOB

Affects the intensity of the distortion.

TONE KNOB

Cuts the high end from the distortion signal as you turn the knob down.

DISTORTION PRE/POST/DRY EQ SWITCH

Determines where the distortion circuit falls in the pedal’s signal path.

INPUT JACK

Plug your instrument or the output of another effects pedal into this ¼” jack.

DRY OUTPUT JACK

Use this ¼” jack to output a dry, unaffected version of your bass signal.

OUTPUT JACK

Use this ¼” jack to output the signal, dry or affected based on the bypass status.

XLR JACK

Use this to output a balanced signal.

XLR VOL KNOB

Use this to set the volume of the XLR output.

XLR BYPASS BUTTON

Push in to have the XLR output the signal based on the bypass state of the pedal.

GROUND LIFT BUTTON

Push in to keep ground connected to pin 1 of the XLR jack. Leave out to disconnect pin 1 from ground.

VOLUME

Controls the output level of the ANALOGIZER.

SPREAD

Controls the delay time of the ANALOGIZER.

BLEND

Varies the mix of direct and effected signals from 100% dry when set to counter-clockwise to 100% wet at full clockwise.

GAIN

Controls the input gain of your ANALOGIZER.

STATUS LED AND FOOTSWITCH

When the STATUS LED is lit, the ANALOGIZER is in effect mode. When the LED is off, the ANALOGIZER is in true bypass mode. Use the FOOTSWITCH to toggle between the two modes.

INPUT JACK

Connect the output of your instrument or another effects pedal to this jack.

AMP JACK

Connect the AMP jack to your amplifier input or the input of another effects pedal.

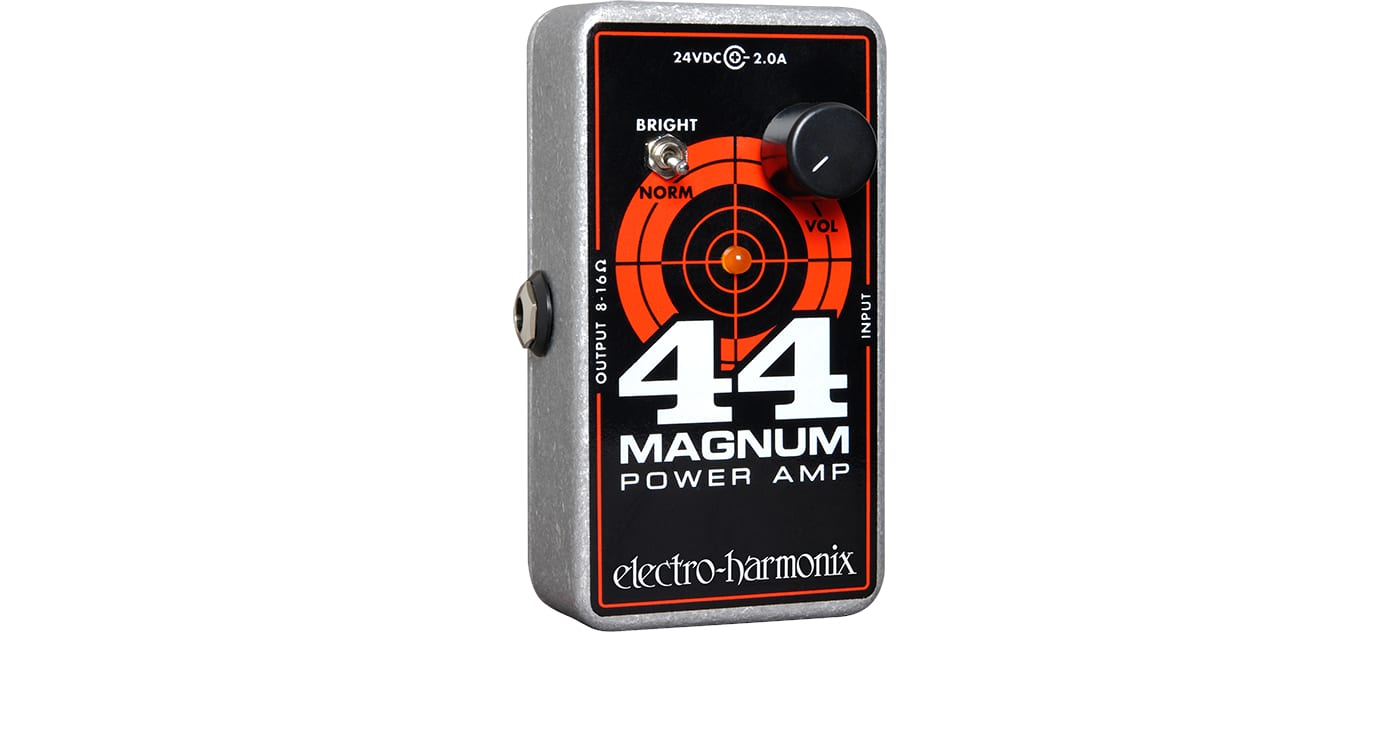

BRIGHT/NORM CONTROL

When engaged, the BRIGHT switch adds a subtle top boost or presence to your signal. When in the NORM position, the top boost is defeated.

VOLUME CONTROL

This knob controls the volume or loudness of the amplifier.

INPUT JACK

Plug the output of your guitar, effects pedals or any other instrument into the INPUT jack using a standard ¼” instrument cable. The input impedance presented at the INPUT jack is 2 MΩ.

OUTPUT JACK

Connect the 5MM’s OUTPUT jack directly to a speaker cabinet. 8 Ω – 16 Ω only.
